How to Install the Echo RO and Flow (Formerly H2 Server)

Ready to install your new Echo RO & Echo Server? Check out this video to get step by step guidance!

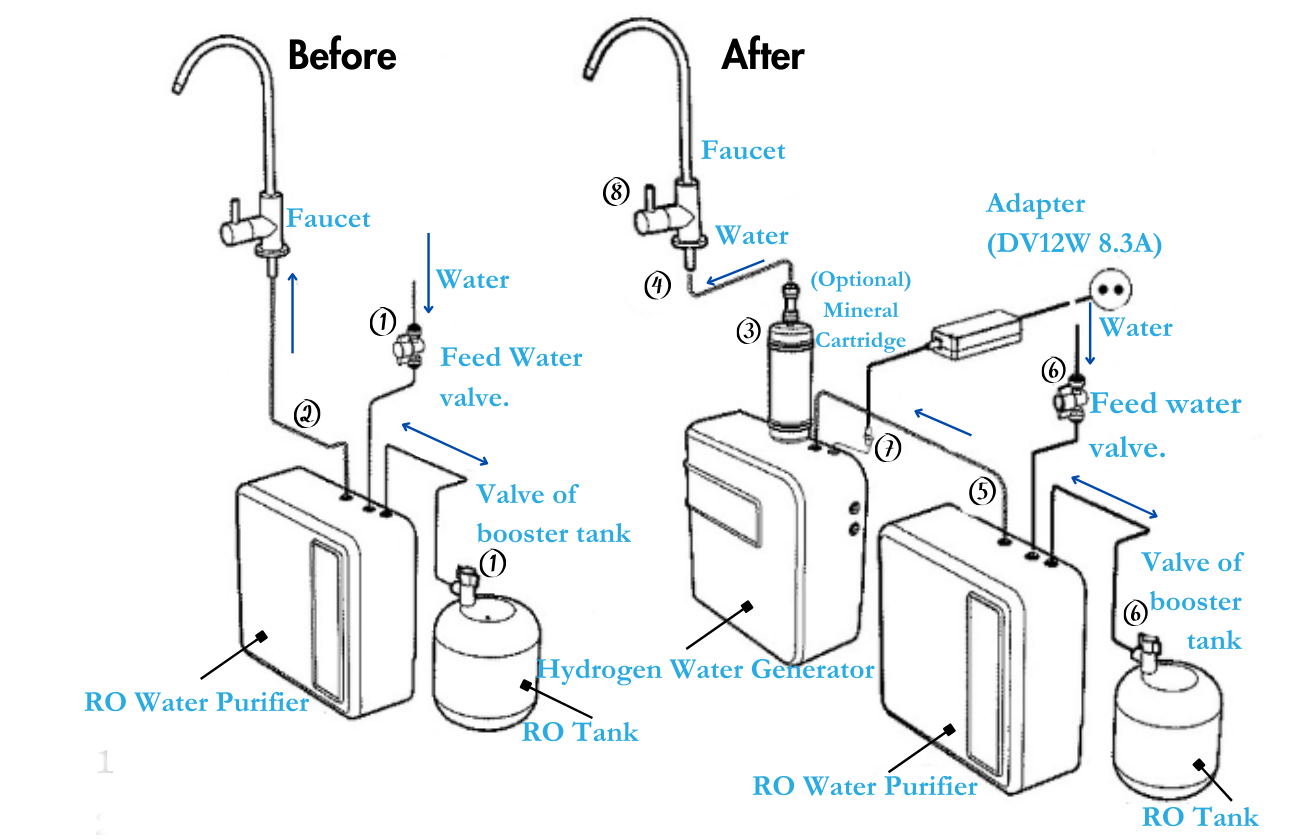

How to Install Your Echo RO & Server

1. Turn off the water supply to the filter (or RO system).
2. Unplug the tube from the faucet and plug it into the in-port on the Server. This tube should be connected from the filter system to the H2 Server System.
3. Plug the tube you received with the H2 Server into the Out-port of the Server System and into the Faucet. All tubes should be 1/4 inch/0.635 cm in diameter.
4. Turn on the water supply valve to the filter (or RO system)
5. Insert the power adapter(DC12V 8.3A) Plug into the Echo H2® Server power connection and plug into Surge Protector.
6. Plug the power supply with the green LED into the Server and plug the power supply with the red LED into the RO System
   1. If these are switched, the devices will not function correctly
7. Please turn on and off the faucet valve repeatedly to ensure that the Echo H2® Server is normally operating.
