Echo Clean 2024 Model User Manual

User Manual for Echo Clean™ Natural Bleach Alternative

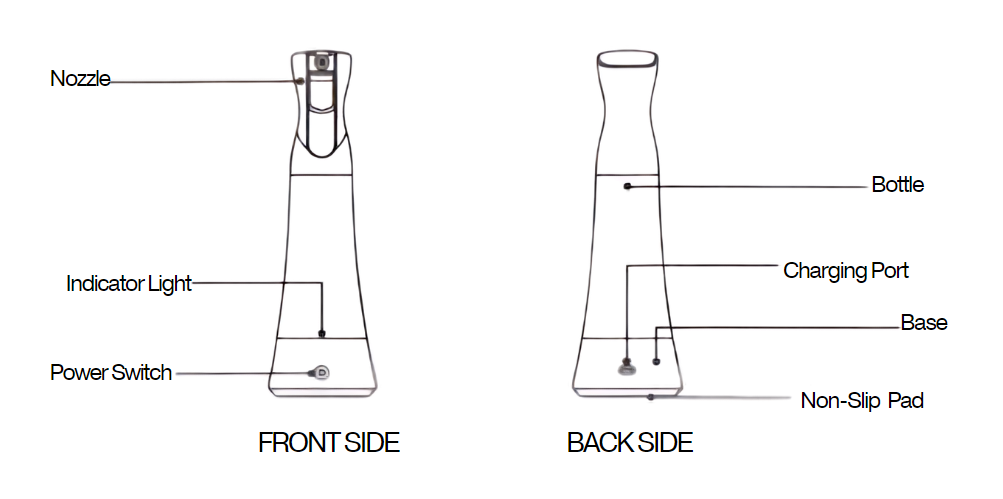

Product Introduction

Safety Precautions Summary

Immediate Action

• Stop using the device if you notice abnormal sounds, smells, or high temperatures.

Handling

• Avoid operating the machine or handling the power cord with damp hands.
• Turn off and unplug the machine before maintenance.

Cleaning Guidelines

• Do not use gasoline, alcohol, or chemical solvents for cleaning.
• Avoid tightening the sprayer during the cleaning cycle to prevent pressure-related clogs.

Operating Environment

• Keep the device out of high-temperature or humid environments.
• Do not use in flammable, explosive, or corrosive environments.

Disinfectant Use

• Use disinfectant without mixing it with other solvents.
• Discard unused disinfectant after 5 days by pouring it into safe disposal areas.

Maintenance and Disposal

• Avoid unauthorized repairs, modifications, or battery replacement.
• Properly dispose of the battery:
  1. Disconnect the power supply.
  2. Remove the battery cover with a screwdriver.
  3. Carefully extract the battery.
• Warning:
  • Eye Contact: Rinse immediately with water and seek medical advice.
  • Ingestion: Induce vomiting with warm water and seek immediate medical attention.

Sodium Hypochlorite Safety

Storage:

• Store in a dark place, away from children.

Salt Selection:

• Use only non-mineral, additive-free salt (e.g., Kosher salt).

Health and Safety:

• Do not spray into respiratory systems or directly inhale.
• Avoid skin contact, and do not heat sodium hypochlorite.
• Never drink the solution.

Chemical Interactions:

• Avoid mixing with acidic cleaners like vinegar or tile cleaner.

Fabric and Surface Care:

• May bleach fabrics; avoid on silk, leather, or dark surfaces.

Machine Maintenance and Operation

• Clean thoroughly between solution changes and as directed in the manual.
• Rest the machine for 5 minutes between cycles.
• Remove salt from the machine if it is idle for long periods.
• Do not store sodium hypochlorite in the machine for over 5 days.

This summary captures the critical instructions and warnings for safe and effective device use. For detailed guidance, always refer to the full manual.

💧 Solution Preparations

The Echo Clean device produces both HOCl and NaOCl, which provide comprehensive cleaning and disinfecting solutions. This ensures a hygienic environment with flexibility depending on cleaning needs.

*For more details, refer to the following: What is the difference between Hypochlorous Acid (HOCl) and Sodium Hypochlorite (NaOCl) for the Echo Clean?

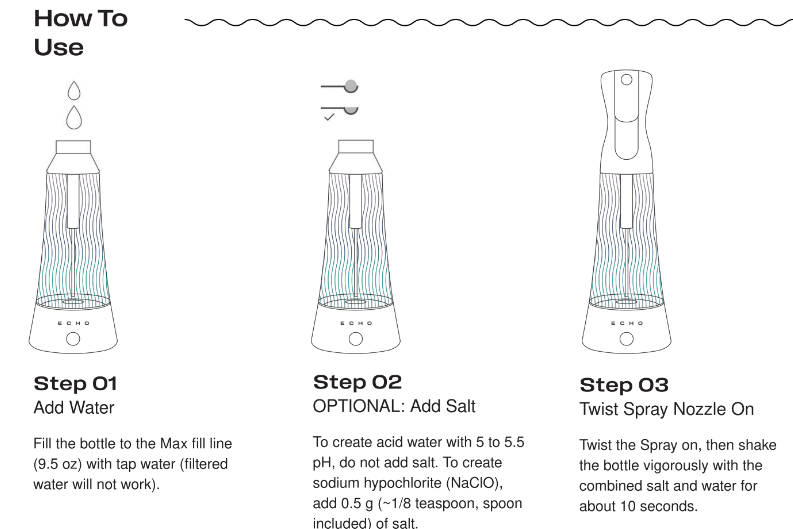

Hypochlorous Acid (HOCl) Preparation

1. Fill the Bottle:

   • Add TAP WATER to the fill line in your bottle. Do not use filtered, RO, or distilled water as the chlorine in the tap water is necessary for activation.

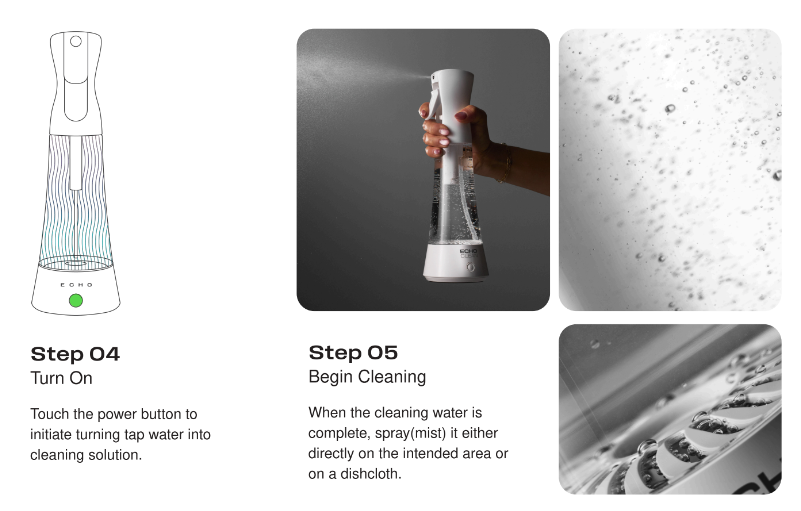

2. Start the Machine:

   • Press the power button. You should hear a beep, and the indicator light at the base will flash with colored lights, indicating that the machine is operating normally.

3. Completion:

   • Once the disinfectant is made, the machine will automatically stop and turn off. The buzzer will sound three times to indicate that the disinfectant is ready.

The function of Hypochlorous Acid (HOCl) in Echo Clean:

1. Disinfection:

   • HOCl is a highly effective disinfectant that kills a wide range of pathogens, including bacteria, viruses, and fungi. It is particularly known for its gentleness on surfaces while being tough on germs, making it suitable for sanitizing surfaces that come into contact with food, skin, or sensitive areas.

2. Safety:

   • HOCl is non-toxic and safe for use around people, pets, and food. It is naturally produced by the human immune system, which means it is effective without being harmful, making it ideal for daily use in homes, schools, and healthcare settings.

3. Odor Control:

   • It effectively neutralizes odors by breaking down odor-causing bacteria, leaving spaces fresh and clean without harsh chemical smells.

Sodium Hypochlorite (NaCl) Preparation

1. Check the Bottle:

   • Ensure there is no foreign matter inside the bottle.

2. Prepare the Salt Solution:

   • Place one spoon of salt, which measures exactly 1/8 teaspoon, into the measuring glass (do not exceed the edge of the spoon).
   • Add 1 and 1/3 cups of TAP WATER to the measuring glass and stir until the salt is completely dissolved. Do not use filtered, RO, or distilled water, as the chlorine in the tap water is necessary for activation.

3. Fill the Bottle:

   • Pour the dissolved salt solution into the bottle.
   • Add clean water up to the maximum water line.
   • Tighten the sprayer.

4. Activate the Machine:

   • Shake the bottle to mix the saline solution evenly.
   • Press the power button at the base. The buzzer will sound once, the indicator light will flash with changing colors, and bubbles will appear in the bottle, indicating that the machine is operating normally.

5. Caution:

   • The machine's base is the sodium hypochlorite generator, which is not waterproof. Do not rinse or soak it in water.

 The function of Sodium Hypochlorite (NaOCl) in Echo Clean:

1. Disinfection:

   • Sodium hypochlorite is a potent disinfectant that kills a broad spectrum of germs and viruses. It is particularly effective for more robust cleaning tasks like deep cleaning or environments with high sanitation levels. However, it is not suitable for surfaces that come into contact with food, skin, or sensitive areas.


     To ensure safety when using sodium hypochlorite on surfaces that come into contact with food or skin, it is important to consider the following:

     1. Drying alone is Not Sufficient for Food- or Skin-Contact Surfaces. Sodium hypochlorite residues can persist even after drying. Any remaining residues could pose potential health risks when the surface comes into contact with food or skin.

     2. Rinsing is Recommended: To ensure safety, the surface should be rinsed thoroughly with potable water after the sodium hypochlorite solution has dried. This is especially critical for food preparation surfaces or any surface likely to have direct contact with the skin.



2. Bleaching and Stain Removal:

   • NaOCl has strong bleaching properties, making it effective at removing stains and whitening surfaces. It can be used for tasks like cleaning grout and sanitizing heavily soiled areas. Sodium hypochlorite may or may not have a bleaching effect on fabrics. Always test the surface prior to use.



3. Versatility in Use:

   • While it is a more aggressive cleaner compared to HOCl, NaOCl is versatile and widely used in various industries for disinfecting, sterilizing, and cleaning.

💧 Echo Clean™ vs. Household Bleach: A Safer, Less Toxic Way to Clean!

We all know how strong and sometimes harsh household bleach can be, right? Traditional bleach typically contains 5.25-6.25% chlorine; for sanitizing, you’re looking at 50-200 ppm.

But here's the great news – Echo Clean™ offers a way to get the job done without the intense chemicals or harsh fumes! Let’s take a look at how Echo Clean™ compares to bleach based on cycles:

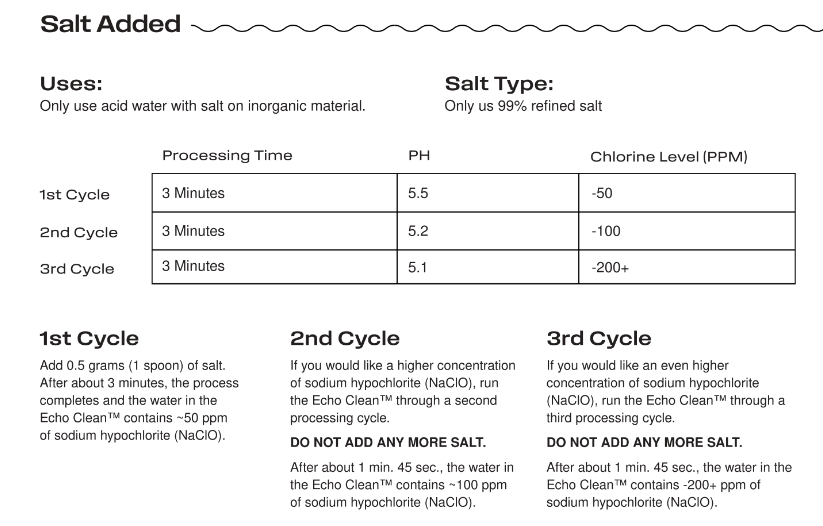

Echo Clean™ Levels (Sorted by Cycles):

With just 1 scoop (1/8 tsp.) of kosher salt, you’re getting excellent cleaning power but with a lot less toxicity than traditional bleach. No need to hold your breath or worry about harsh chemical residues! Each cycle lasts for 3 minutes. Be sure to rest the machine for 5 minutes between cycles.

Whether you’re doing a light clean or a deeper scrub, Echo Clean™ gives you flexibility without compromising your health – and we’re all about that life!

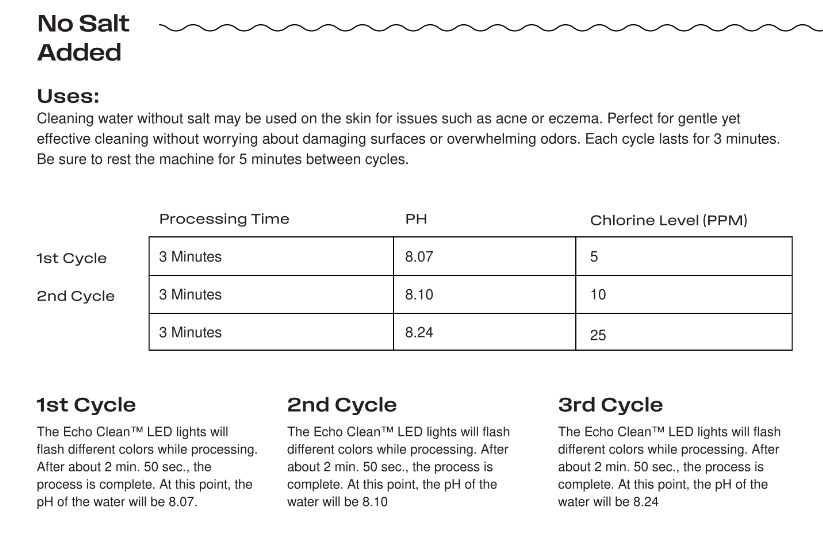

Echo Clean™ Chlorine Levels (Using Tap Water & No Salt):

Bonus: If you're using Echo Clean™ with tap water (no salt), it produces super low chlorine levels, from 5 to 25 ppm, while maintaining a stable, safe pH level. So it's perfect for gentle yet effective cleaning without worrying about damaging surfaces or overwhelming odors. Each cycle lasts for 3 minutes. Be sure to rest the machine for 5 minutes between cycles.

In a nutshell, Echo Clean™ gives you all the sanitizing and disinfecting power you need without the heavy-duty toxins or fumes of traditional bleach. It’s like the eco-friendly hero of your cleaning routine – safer for you, your family, and the planet.

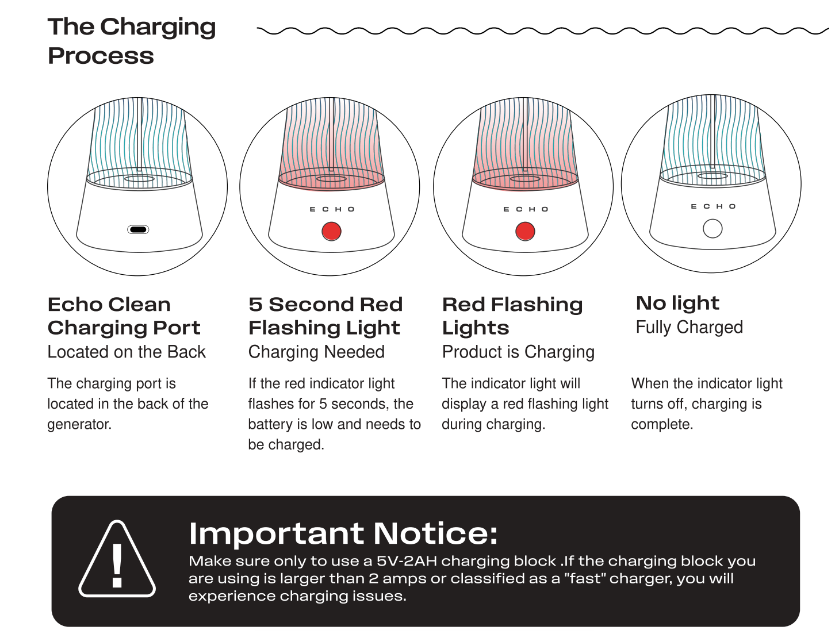

💧 Charging

Charging Process

•  The charging port is located in the back of the generator. Make sure only to use a 5V-2AH charging block (If the charging block you are using is larger than 2 amps or classified as a "fast" charger, you will experience charging issues.)
• The indicator light will display a red flashing light during charging and will turn off once charging is complete.

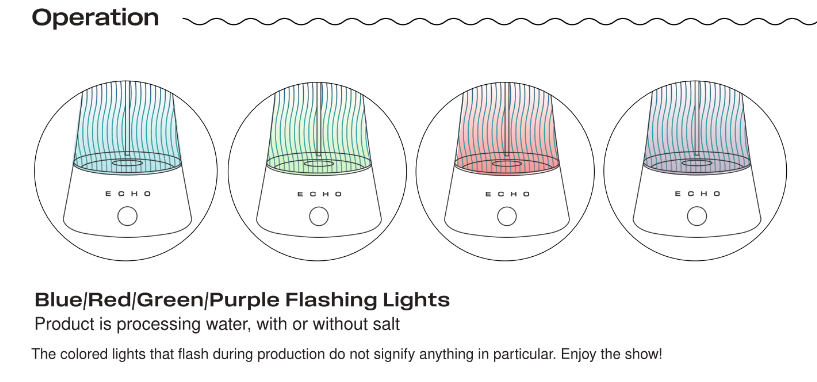

• The colored lights that flash during production do not signify anything in particular. Enjoy the show!

Low Battery Alert

• If the red indicator light flashes for 5 seconds during operation, the battery is low and needs to be charged.

💧 Maintenance

Regular maintenance is key to running your Echo Clean™ device smoothly and performing its best. By following this simple schedule, you'll extend the life of your generator and ensure every clean is fresh.

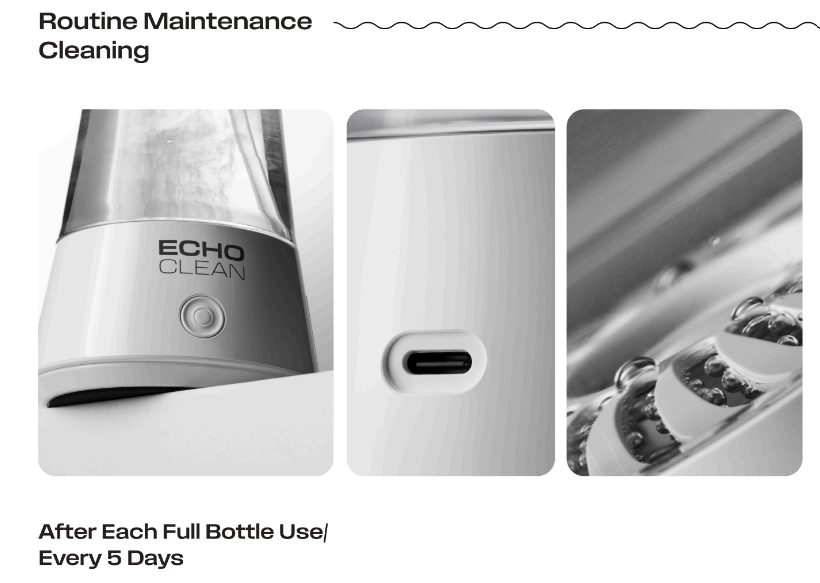

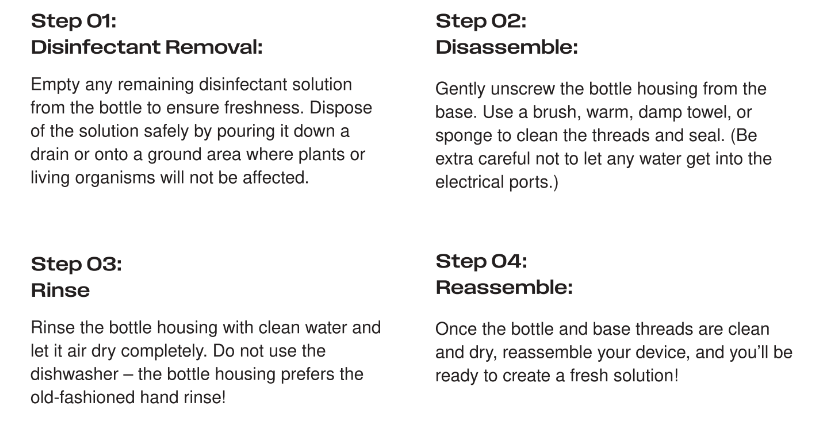

Routine Maintenance Cleaning: After Each Full Bottle Use

1. Disinfectant Removal:  After 5 days, empty any remaining disinfectant solution from the bottle to ensure freshness. Dispose of the solution safely by pouring it down a drain or onto a ground area where plants or living organisms will not be affected.
2. Disassemble: Gently unscrew the bottle housing from the base. Use a brush, warm, damp towel, or sponge to clean the threads and seal. (Be extra careful not to let any water get into the electrical ports.)
3. Rinse: Rinse the bottle housing with clean water and let it air dry completely. Do not usw the dishwasher – the bottle housing prefers the old-fashioned hand rinse!
4. Reassemble: Once the bottle and base threads are clean and dry, reassemble your device, and you’ll be ready to create a fresh solution!

Monthly Deep Cleaning:

1. Clean the Bottle: Thoroughly rinse the bottle with clean water to remove any lingering residue.
2. Prepare a Cleaning Solution: Mix a 50/50 solution of white vinegar and water, filling the bottle about 1/4 of the way.
3. Let It Soak: Let the vinegar solution sit for 1-2 hours (or overnight if there’s heavy buildup). This helps dissolve any gunk on the electrode.
4. Shake It Up: After soaking, give the bottle a good shake to dislodge any remaining debris.
5. Rinse Thoroughly: Pour out the vinegar solution and give the bottle another rinse with clean water.

Important Notes:

• Keep the Base Dry: The base of your Echo Clean™ device (which houses the generator) isn’t waterproof. Always keep the electrical port dry and avoid rinsing or soaking the base during cleaning.

• Monitor Performance: If your Echo Clean™ device starts to lose a bit of its cleaning magic or you notice a buildup of residue, you might want to do deep cleaning a little more frequently.

By following this simple routine, your Echo Clean™ device will stay in top shape for longer, giving you fresher, safer, and more effective cleans every time!

💧 Troubleshooting Guide

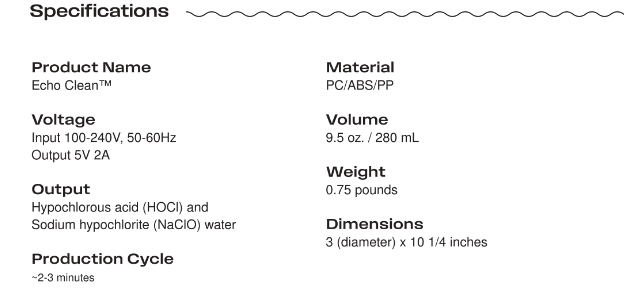

💧 Product Specifications

Product Name: Echo Clean

Product Model: XD-S01

💧 Warranty

Please use the QR code below or visit our Warranty Page for Warranty Information.

💧 Need help?

If you encounter any issues or have questions about your Echo Go+, our dedicated support team is here to assist you. Don't hesitate to reach out if you're experiencing technical difficulties, need replacement parts, or just have a general inquiry.

Contact Methods:

• Email: Send us an email at support@echowater.com with a detailed description of your issue or question. Please be sure to include your order # and any photos you feel may be helpful. Our team will respond promptly to help resolve your concern.
• Phone: Call us at 1-855-737-1114 between 9 AM and 5 PM MST, Monday through Friday. Our friendly customer support representatives are ready to assist you.
• Online Support: Visit our website at www.echowater.com/support to access FAQs and troubleshooting guides and submit a support request directly. We also offer chat support between 9 AM and 5 PM MST, Monday through Friday.

We are committed to ensuring you have the best experience with your Echo Go+. Your satisfaction is our top priority!
