Echo Refresh

User Manual

Beware sign.PNG  SAFETY INSTRUCTIONS

Please be sure to follow these instructions to prevent electric shock, fire, or explosion which could result in personal injury or product damage
  • Do not operate the machine near an open flame.
  • Use the machine ONLY in well-ventilated areas. DO NOT use in small confined spaces.
  • Only distilled water should be used in your machine. Do not use low-quality water, such as tap or unfiltered water.
    • Water electric resistivity>2megohm.cm
    • Electric conductivity<0.5us/cm
    • Do not use alkali liquid (KOH nor NaOH)
    • Never use tap water!
  • Do not add anything to your water. Dissolved substances in water will damage the electrolysis cell.
  • Do not disassemble the electrolysis cell.
  • Be sure to drain the water out before transporting the machine.
  • It is normal if there is a little water leakage during shipping because the pipe inside the machine will still have a little water from when the machine was tested before shipping.
PRODUCT STORING

When your Echo Refresh Machine is stored or put away for long periods of time, keep a small amount of water in the machine reservoir.
  • If the machine hasn’t been used for an extended time, pour some distilled water into the reservoir and wait for 24 hours before turning the power on.
  • Never let the machine get dried out for more than one year.

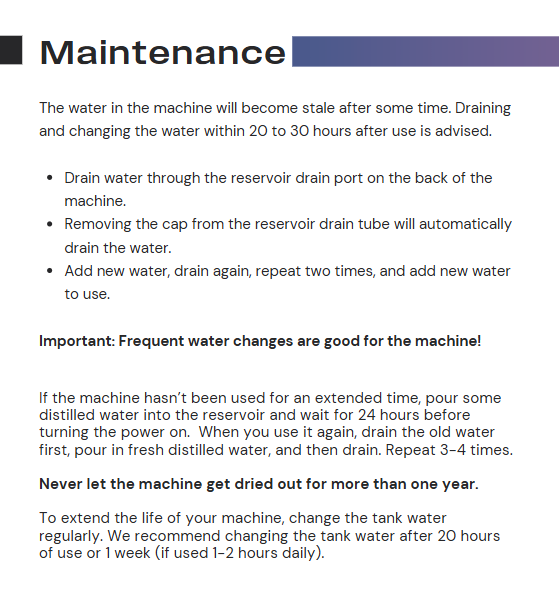

  • To extend the life of your machine, change the tank water regularly.
    • We recommend changing the tank water after 20 hours of use or 1 week (if used 1-2 hours daily).

PRODUCT SPECIFICATIONS

  • Hydrogen and Oxygen Purity: 99.999%
  • Max Hydrogen Output: 1200 ml/min
  • Max Oxygen Output: 600 ml/min
  • Input Water: Only distilled water
  • Tank Capacity: 1500 ml / 0.39 gal
  • Output Pressure: 0-0.2Mpa
  • Power: 110V-240V @6Amps
  • Power Consumption: 470W
  • Size: 37*25*37cm. | 15x11.25x15 in.
  • Weight: 20.9 kg. | 46 lbs.

HOW TO USE



  1. Take the machine out of its packaging and check the equipment for any damage during transport.
  2. Add 7.5 cups of distilled water (this is full). To maintain optimal performance, keep the tank 2/3 full at all times (otherwise, errors will occur.)
    1. You must add water before turning on the machine to ensure the electrolysis components are not dry!
  3. Connect the machine to the power using the provided power cord. Please be sure the power source is free from debris or water.

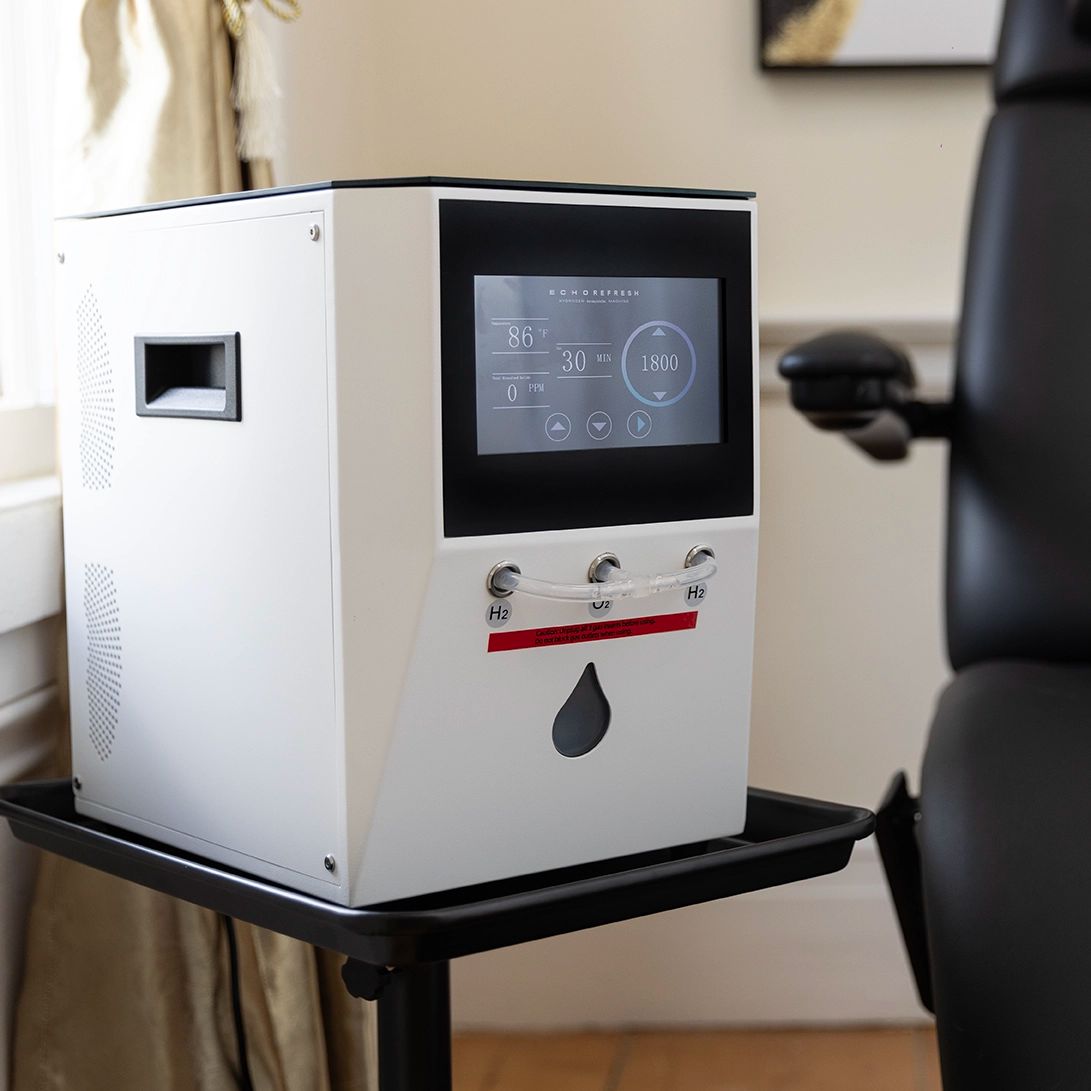

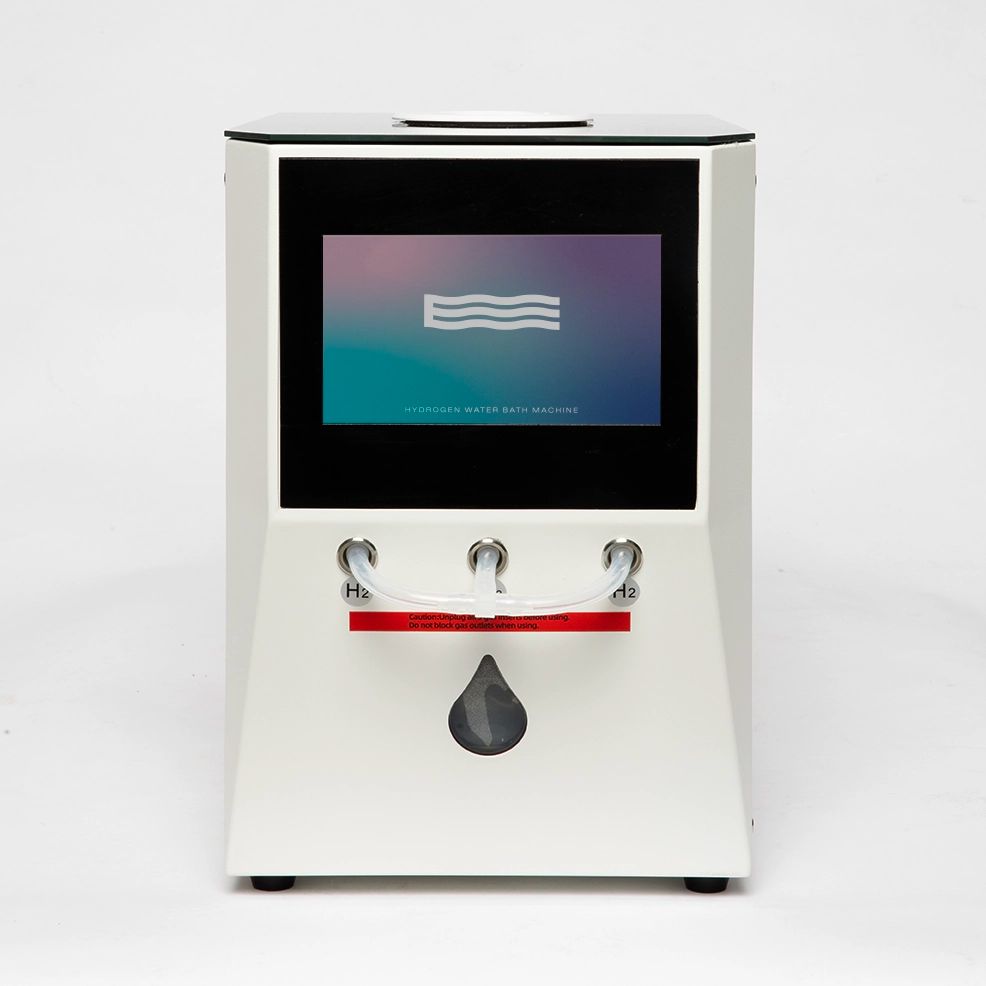

  4. Locate the power switch on the back panel and flip it to “on.” Once the machine is set to “on,” the front panel screen will light up and enter a standby state.
  5. Select the Start/Pause option on the screen to start producing hydrogen (the default time is 30 minutes, and the default hydrogen flow is the first level).
    1. A countdown will begin to show the progress of hydrogen production.
    2. Once the countdown ends, the machine enters the standby state.
    3. The machine will enter the next timing cycle if you select the Start/Pause switch again.

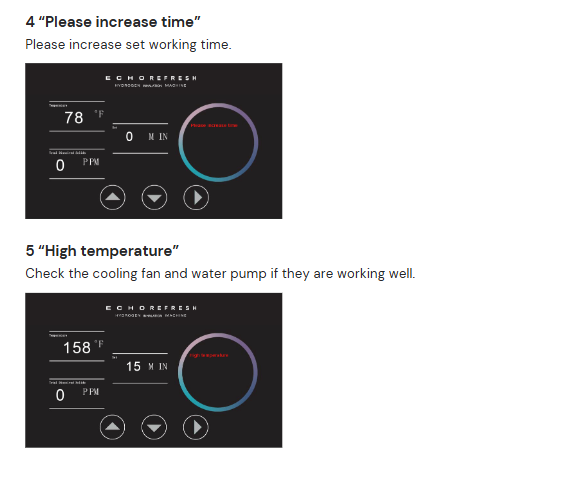

    4. The timer can be adjusted to the desired time. Each time you click "+," the time will increase by 30 minutes (up to 999 minutes.) Each time you click "-," the set time will decrease by 30 minutes. The minimum time should be at least 30 minutes; otherwise, the machine will not work correctly.
  6. There are three levels of hydrogen flow. The first (default) level is the highest. The flow level can be adjusted with the arrows "↑" and "↓" on the right side of the screen.
    1. Each time you click "↑, "hydrogen flow will increase by one level, and each time you click "↓, "hydrogen flow will decrease by one. Since water resistivity and quality affect hydrogen flow, the actual flow will depend on the machine received.

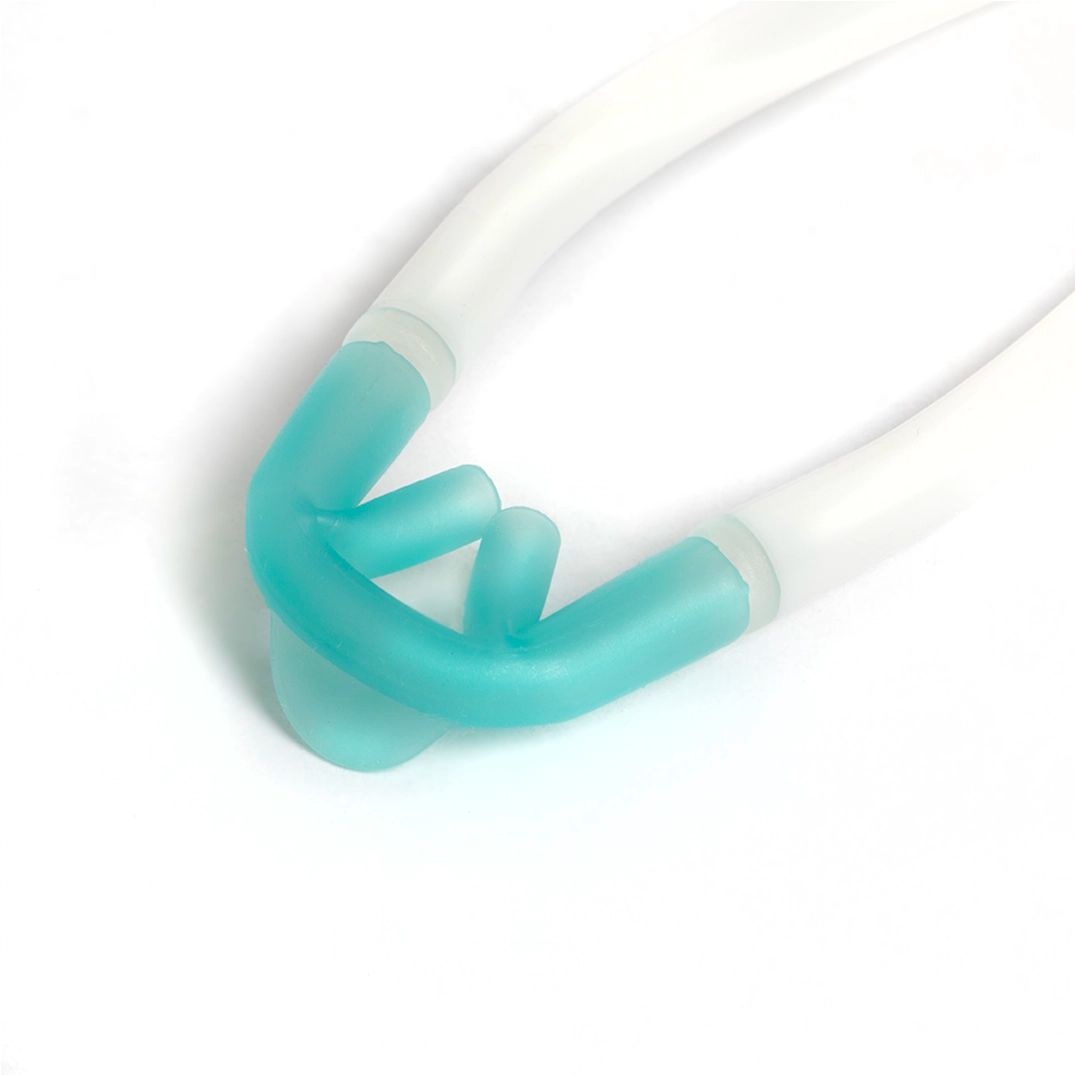

  7. Connect the nasal cannula to the Hydrogen or Oxygen outlet to inhale hydrogen or oxygen. Use the Y connector to inhale both (mixed hydrogen and oxygen).


Never block the Hydrogen or oxygen outlet when the machine is working! The pressure will damage the machine.
