Echo Flask™ Battery & Charging Guide

Understanding how your Echo Flask™ battery works is one of the best ways to maximize performance, extend battery life, and avoid unnecessary frustration. This guide explains what to expect from your battery, how charging habits affect performance, and how to troubleshoot common concerns.

📊 Battery Specifications

Your Echo Flask™ uses a high-quality rechargeable lithium-ion battery designed specifically for portable hydrogen generation.

Battery Type: 2200 mAh Lithium-Ion (7.4 Wh)
🔗 Features, Construction & Specifications

Full Charge Time: Approximately 2.5 hours from fully depleted

Travel Approval: TSA-approved for carry-on luggage. Due to airline regulations, lithium-ion batteries may not be placed in checked baggage.
🔗Air Travel

Certifications: CE, FCC, KC, Electromagnetic Compatibility (#R-R-awi-IW-5W001)

🔋Understanding Expected Battery Performance

One of the most common questions we receive is:

"How many cycles should my Flask run on a full charge?"

Under normal operating conditions, most customers can expect:

• Approximately 5–7 ten-minute hydrogen generation cycles
  OR
• Approximately 2–3 twenty-minute hydrogen generation cycles
• Roughly 60 minutes of total runtime per charge

It's important to understand that these numbers are averages, not guarantees. Several factors influence battery performance, including:

• Firmware version
• Battery age
• Charging habits
• Environmental temperature
• Improper Flask usage or maintenance
• Bluetooth usage
• App syncing frequency

Because of these variables, battery performance may vary slightly from charge to charge.

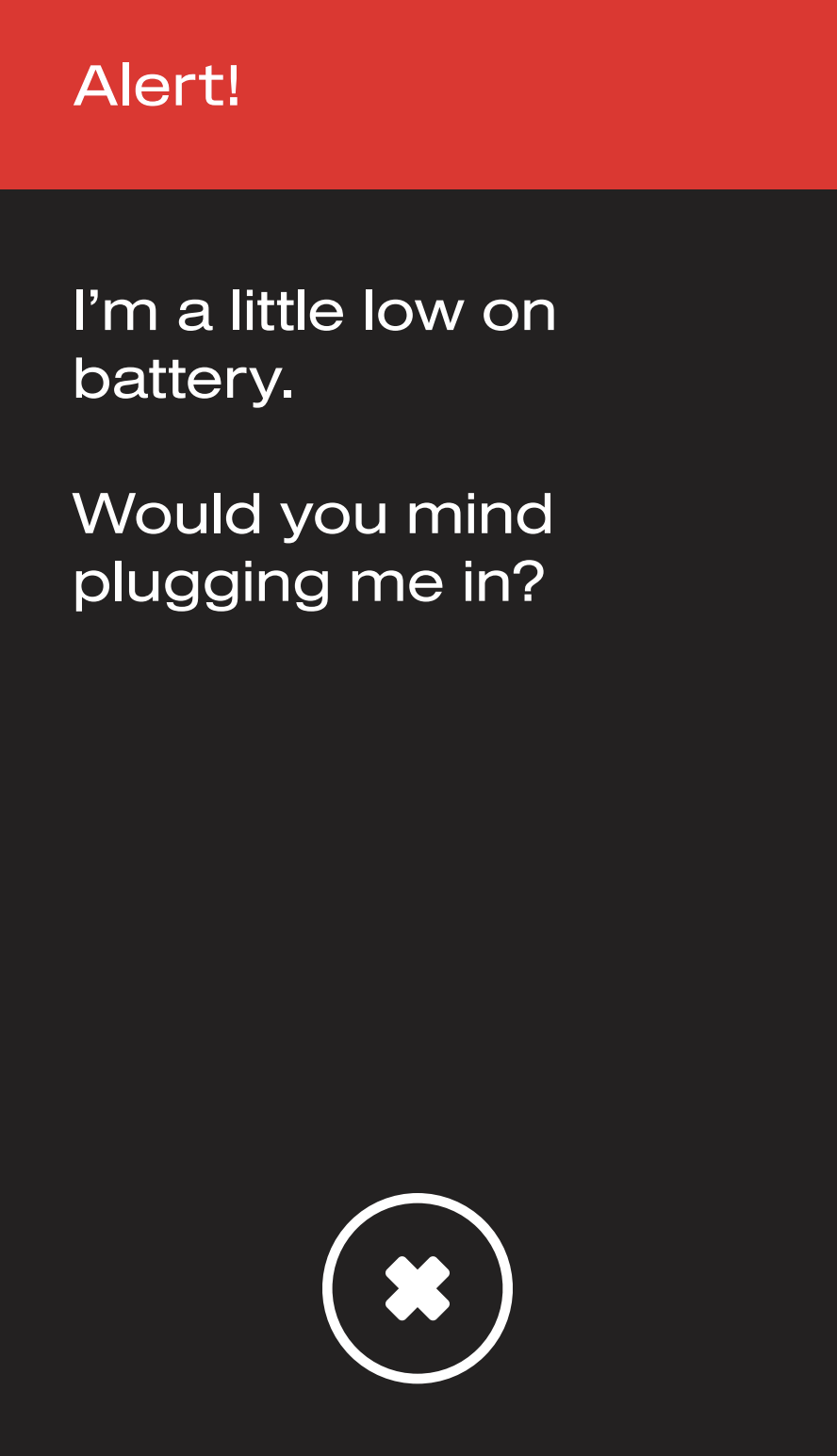

🔔 Why Do I Get a Low Battery Warning After Only A Few Cycles?

This is completely normal.

The low battery warning is designed to notify you that battery capacity is getting low, but it does not necessarily mean the battery is depleted.

Many customers can still run 1–2 additional cycles after receiving the warning.

The battery warning should be viewed as an early notification rather than an indication that the Flask is finished operating.

The true measure of battery performance is how many complete cycles the Flask performs before it can no longer start another cycle.

🎓 Understanding Battery Calibration

Battery calibration is one of the most misunderstood aspects of lithium-ion technology.

When your Flask is brand new, the battery management system has not yet collected enough data to accurately estimate remaining capacity.

Think of it like teaching your Flask how to understand its own battery.

During the first few weeks of ownership, you may notice:

• The battery percentage is dropping faster than expected
• Different cycle counts between charges
• A low battery warning appears sooner than expected
• Battery estimates that seem inconsistent

This is normal.

As you continue using the Flask and completing full charge/discharge cycles, the battery management software becomes more accurate.

Over time:

• Voltage curves stabilize
• Capacity estimates improve
• Remaining battery predictions become more accurate
• Performance becomes more consistent

Most batteries complete their calibration period naturally within the first several weeks of use.

🛜 How Bluetooth & App Usage Affect Battery Life

The Echo Flask™ communicates with the Echo Water App using Bluetooth.

Every time the Flask:

• Pairs with the app
• Syncs hydration data
• Maintains a Bluetooth connection
• Exchanges information with your phone

…it consumes additional battery power.

Because of this, customers who frequently connect to the app may notice fewer available cycles per charge than customers who rarely connect.

This is normal and expected.

For customers primarily focused on maximizing battery life, minimizing unnecessary Bluetooth connections can help preserve battery capacity between charges.

🏆 Best Charging Practices

Following these recommendations will help optimize both short-term performance and long-term battery health.

✅ Allow the Battery to Complete Full Cycles

Especially during the first several weeks of ownership:

• Allow the battery to discharge naturally before recharging whenever possible.
• Avoid charging after every cycle.
• Allow the battery management system time to properly calibrate.

While occasional top-off charging is perfectly safe, frequent partial charges during the calibration period may delay accurate battery readings.

✅ Charge for the Full 2.5 Hours

Many customers notice their Flask displaying a full battery before the 2.5-hour mark.

However, we still recommend allowing the Flask to remain connected for the entire charging period.

Why?

Because the battery indicator reflects the estimated charge level, while the battery management system continues balancing and conditioning the battery behind the scenes.

Charging for the full 2.5 hours helps ensure:

• More accurate battery calibration
• More consistent cycle counts
• Better long-term performance

✅ Always Use a Wall Outlet

👍🏼 For best results:

Direct wall outlet

Reliable charging adapter

Quality charging cable

❌  Avoid:

 Power strips

Surge protectors

Outlet extenders

Extension cords

While these accessories often work, they can sometimes provide inconsistent amperage, which may affect charging performance and create misleading troubleshooting results.

💧 Can I Use My Flask While Charging?

Yes, you definitely can!

If needed, the Echo Flask™ can run a hydrogen generation cycle while connected to power.

This can be helpful if your battery is low and you would like to continue using the device while it charges.

⚕️ Quick Battery Health Test

If you're unsure whether your battery is performing normally, this simple test provides the most accurate assessment.

Step 1: Fully charge the Flask for at least 2.5 hours.

Step 2: Verify the Flask firmware is fully updated.

Step 3: Run consecutive 10-minute cycles back-to-back.

Step 4: Count how many complete cycles the Flask performs before it can no longer start another cycle.

Important:

Do not stop counting when the low battery warning appears.

Continue until the Flask is physically unable to complete another cycle.

This number provides the clearest picture of actual battery performance.

🛠️ Troubleshooting Charging Concerns

⚡️ Flask Will Not Charge

Check the following:

• Is the charging cable fully inserted?
• Have you tried another USB-C cable?
• Have you tried another charging adapter?
• Is the outlet working properly?
• Is the Flask connected directly to a wall outlet?

Many charging concerns are ultimately traced back to a cable, adapter, or outlet issue rather than the Flask itself.

🪫 Battery Drains Faster Than Expected

First confirm:

• Firmware is fully updated
• Flask has completed the calibration period
• The battery is being charged for the full 2.5 hours
• Bluetooth syncing isn't occurring excessively
• Battery performance falls within the expected 5–7 cycle range

Remember that frequent app syncing will increase battery consumption.

🛑 Charging Stops Intermittently

Possible causes include:

• Loose charging connections
• Damaged charging accessories
• Overheating protection
• Debris in the charging port

If the Flask becomes warm during charging, allow it to cool before resuming charging.

🌡️ Why Does My Echo Flask™ Feel Warm?

It's completely normal for your Flask to become warm during operation or charging.

There are two primary reasons:

Hydrogen Generation

Generating hydrogen requires energy. During electrolysis, electrical current passes through the system, creating a small amount of heat.

Lithium-Ion Battery Activity

The battery naturally generates warmth while:

• Charging
• Discharging
• Powering hydrogen generation cycles

This warmth is a normal byproduct of operation and generally indicates the Flask is functioning as intended.

If the Flask becomes excessively hot, (burning hot to the touch) or you notice a burning odor originating from the Flask itself (rather than from the charging cable or charging adapter), please disconnect it from power immediately, discontinue use, and contact Echo Support for further assistance.


🔌 Charging Accessories & Best Practices

Using the correct charging accessories and handling them properly can help maximize charging performance and prevent unnecessary wear to your Echo Flask™.

Recommended Charging Specifications

For optimal charging performance, we recommend using:

• A 5V / 2A charging block
• A USB-C to USB-C charging cable
• A direct wall outlet whenever possible

Using chargers designed for fast charging, gaming systems, laptops, or devices requiring higher power output may result in inconsistent charging behavior.

Proper Charging Cable Use

When connecting your charging cable, always insert and remove the cable straight in and straight out of the charging port.

⚠️ Avoid wiggling, twisting, rocking, or forcing the charging cable while it is inserted into the Flask.

Doing so may:

• Damage the charging cable connector
• Weaken or break the charging cable head over time
• Dislodge internal charging port connections
• Create intermittent charging concerns
• Result in poor charging performance

The charging port is designed for a secure connection and should not require excessive force or movement during use.

If the cable does not insert smoothly, inspect both the charging port and cable for debris or damage before attempting to reconnect.

Inspect Your Charging Accessories

If you're experiencing charging concerns, take a moment to inspect:

• The charging cable for fraying, bent connectors, or visible damage
• The charging block for signs of overheating or damage
• The charging port for lint, dust, debris, or bent components

Damaged charging accessories are one of the most common causes of charging-related concerns.

Replacement Charging Accessories

If your charging cable or charging block has become damaged, replacement accessories are available for purchase through the Echo Water website.

💡 Good news! You don't have to purchase Echo-branded replacements if you're looking for a more budget-friendly option.

Any quality:

• USB-C to USB-C charging cable
• 5V / 2A charging block

will work perfectly with your Echo Flask™.

Of course, if you prefer Echo-branded accessories, replacement charging cables and charging blocks are also available directly from our website.

Using reliable charging accessories and handling them properly can help ensure years of dependable charging performance from your Echo Flask™.


‼️ Important Battery Warranty Information

Like all lithium-ion batteries, battery performance naturally changes over time as the battery ages.

For this reason, the battery itself is considered a consumable component and is not covered under the product warranty.

However, our team is always happy to help troubleshoot charging concerns, review battery performance, and provide recommendations to help you achieve the best possible battery life from your Echo Flask™.

💬 Need Additional Help?

If you've reviewed this guide and are still experiencing concerns, please visit our Warranty Review page.

When reaching out, please include:

• Firmware version
• Charging setup
• Approximate cycle count per charge
• Any troubleshooting steps already completed

The more information you can provide, the faster we can help identify the cause and get you back to enjoying your Echo Flask™.
