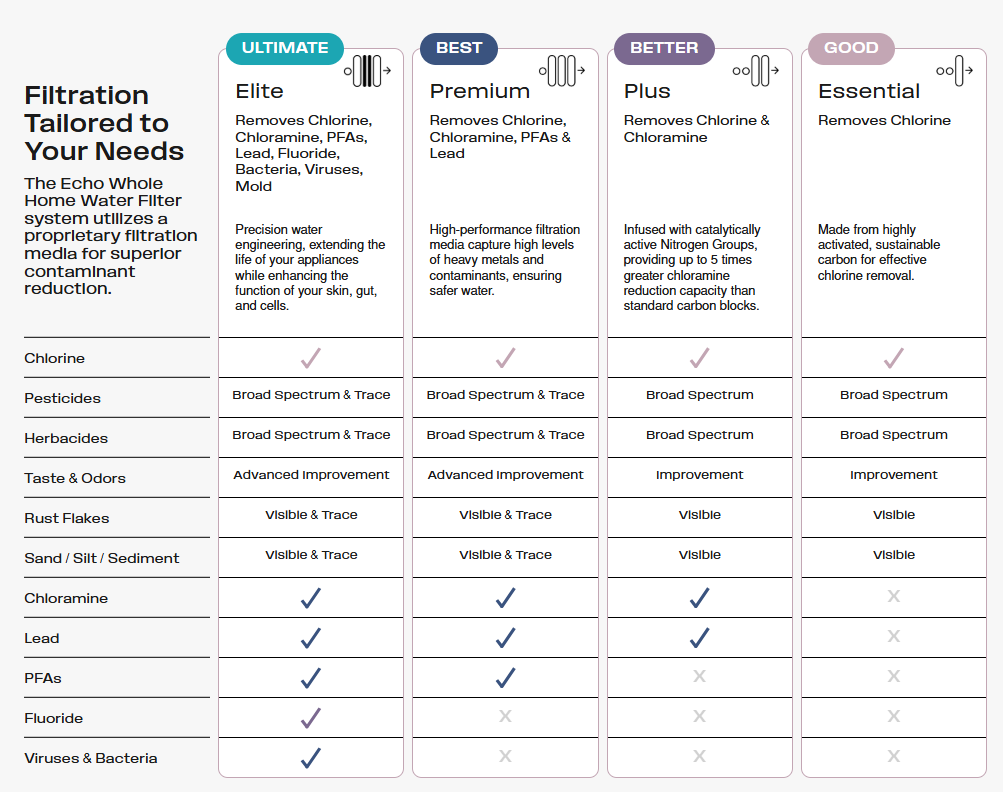

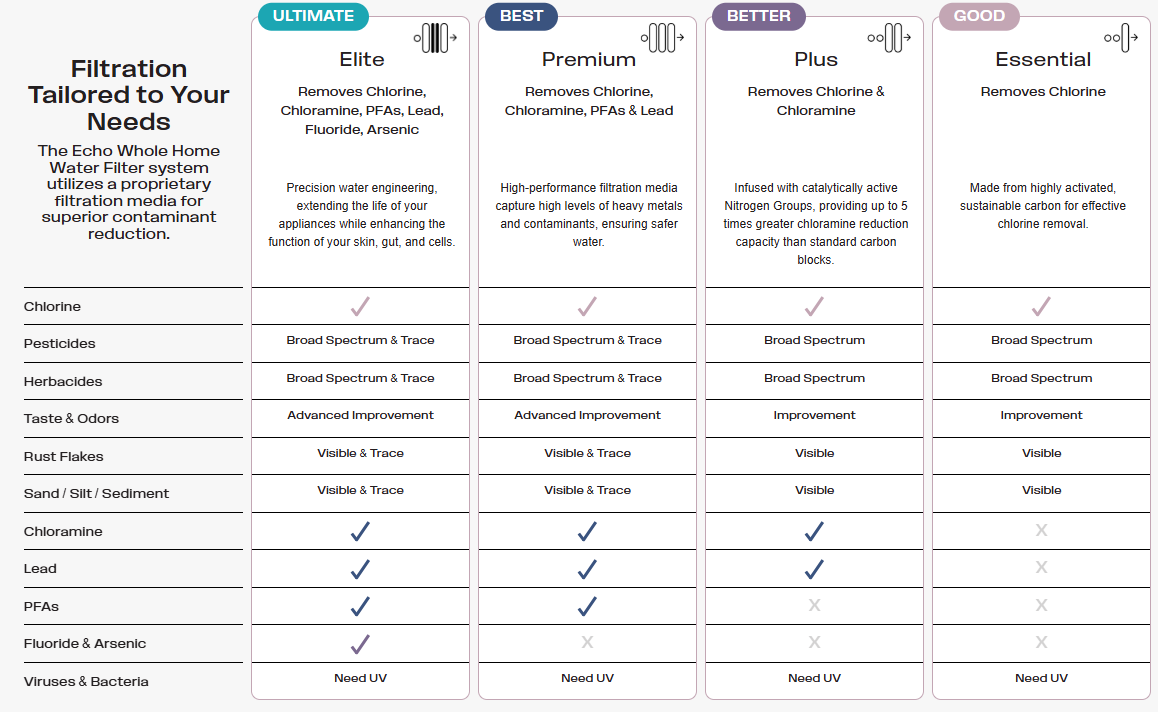

New Echo Pure Systems | Whole Home Filtration System Comparison

Echo Water offers Four premium, easy-to-change whole home filtration systems—each designed and assembled in the USA. All systems are optimized to reduce the need for additional pre- and post-filters by maximizing performance through innovative main system design.

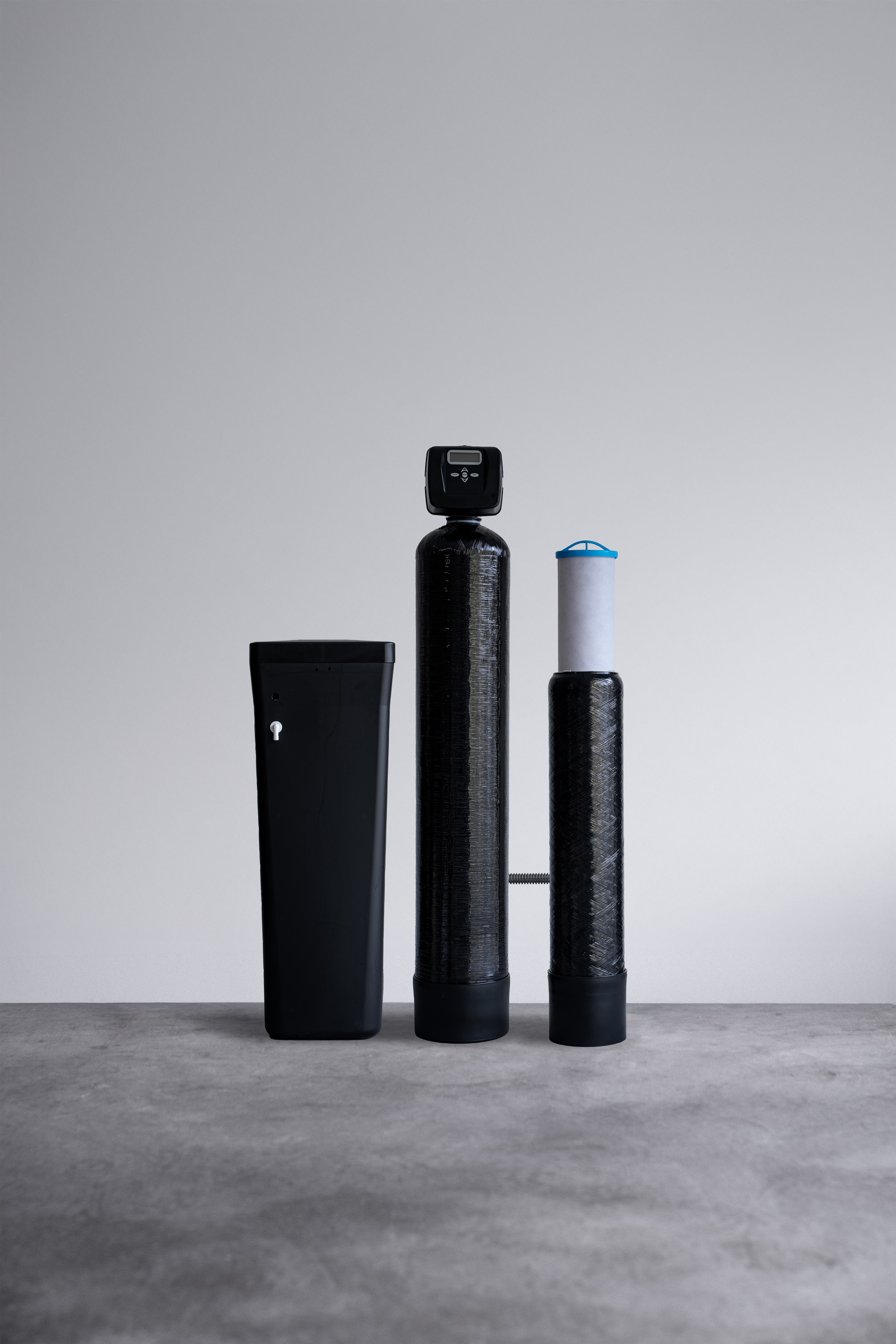

Echo Water Pure-Essential | Whole Home Water Filtration System

Ideal for: Chlorine, Pesticides, Herbicides, Tastes & Odors

Filtration Stages: 1 Filter

• Filter 1: 20 Micron Carbon Block Filter

  • Features: high porosity/low pressure drop, High-performance carbon, Unique binder system, Proprietary manufacturing process, Outer wrap of polypropylene, Netting of polyethylene
  • Benefits: Exceptionally low pressure drop, High dirt holding capacity, Effective at reducing unwanted bad taste and odor, along with chlorine and chloramine taste and odor from potable drinking water, Excellent contaminant reductions
  • Filter Performance: Treats >150,000 gallons (567,812 liters) of water at 7 GPM (26.50 LPM) with greater than 90% reduction (estimated capacity using 2 ppm of free chlorine)

Key Benefits:

• Powerful reduction of chlorine and common impurities

• Available in 3-micron and 20-micron models

• Long-lasting filter with low maintenance needs

• Strong water pressure with minimal drop-off

How It Works:

• Utilizes proprietary, highly activated sustainable carbon for effective chlorine removal

What's Included

• (1) Water Softener
  • (1) Water Softener
  • (1) Control Valve and Computer
  • (1) Brine Tank
  • (1) ProGaurd Feeder
  • (1) Bottle of ProGuard Solution
  • Connections
• (1) Installation Kit
• (1) Filter Housing
• (1) 20 Micron Carbon Block Filter

2. Echo Water Pure-Plus | Whole Home Water Filter with Chloramine Filtration

Ideal for: Chlorine, Chloramine, Pesticides, Herbicides, Tastes & Odors

Filtration Stages: 2 Filters

• Filter 1: 50 Micron/20 Micron Double Pleat Cartridge (sediment, rust, dirt)

  • • 50 - Visible dirt, rust flakes, sand, and sediment
    • 20 - Fine sand, silt, and some sediment that passed through the 50-micron layer
    • Features: Dual gradient double pleated filters, Double Buna-N O-ring seals, Filter belly bands, Durable polyester filter and polypropylene cap construction
    • Benefits: Extended service life, contaminant removal, and dirt holding capacity, Low pressure drop = high flow, Ensures no bypass of contaminants and high chemical compatibility, Prevent collapsing of filters under high flow or contaminant load applications, Bacteria and chemical resistant
      • Extended Service Life: 6,12, 18, or 24 months vs 1-3!
        • The total surface area of the dual gradient double pleated filter is approximately 100 ft2. A typical single layer 2-1/2" x 20" filter is approx. 7 ft2 of filter media area; a 4-1/2" x 2" is approx. 16 ft2.
        • This 50/20 Micron double pleated cartridge has nearly 6.5x more open area compared to standard 4.5"x20" filters (100 ft2 vs 16 ft2) and nearly 14.5x open area compared to standard 2.5"x20" filters (100 ft2 vs 7 ft2).
        • More open area = a longer service life!

• Filter 2: 3 Micron Carbon Block Filter

  • • Filters Chloramine, Chlorine, Pesticides, Herbicides, Tastes & Odors
    • Filter Performance: Treats >50,000 gallons (189,271 liters) of water at 7 GPM (26.50 LPM) with greater than 85% reduction (estimated capacity)
    • Features: High-performance carbon, Unique binder system, Proprietary manufacturing process, Outer wrap of polypropylene, Netting of polyethylene
    • Benefits: Exceptionally low pressure drop, High dirt holding capacity, Effective at reducing unwanted bad taste and odor, along with chlorine and chloramine taste and odor from potable drinking water, Excellent contaminant reductions

Key Benefits:

• Enhanced contaminant reduction with chloramine-specific filtration

• Long-lasting filters and simple installation

• Maintains strong water flow through efficient design

How It Works:

• Chloramine filter uses catalytically active Nitrogen Groups (5x better performance than standard carbon blocks)

• Chlorine filter made from sustainable carbon for superior removal

What's Included

• (1) Water Softener
  • (1) Water Softener
  • (1) Control Valve and Computer
  • (1) Brine Tank
  • (1) ProGaurd Feeder
  • (1) Bottle of ProGuard Solution
  • Connections
• (2) Installation Kit
• (2) Filter Housing
• (1) 3 Micron Carbon Block Filter
• (1) 50 Micron/20 Micron Double Pleat Cartridge

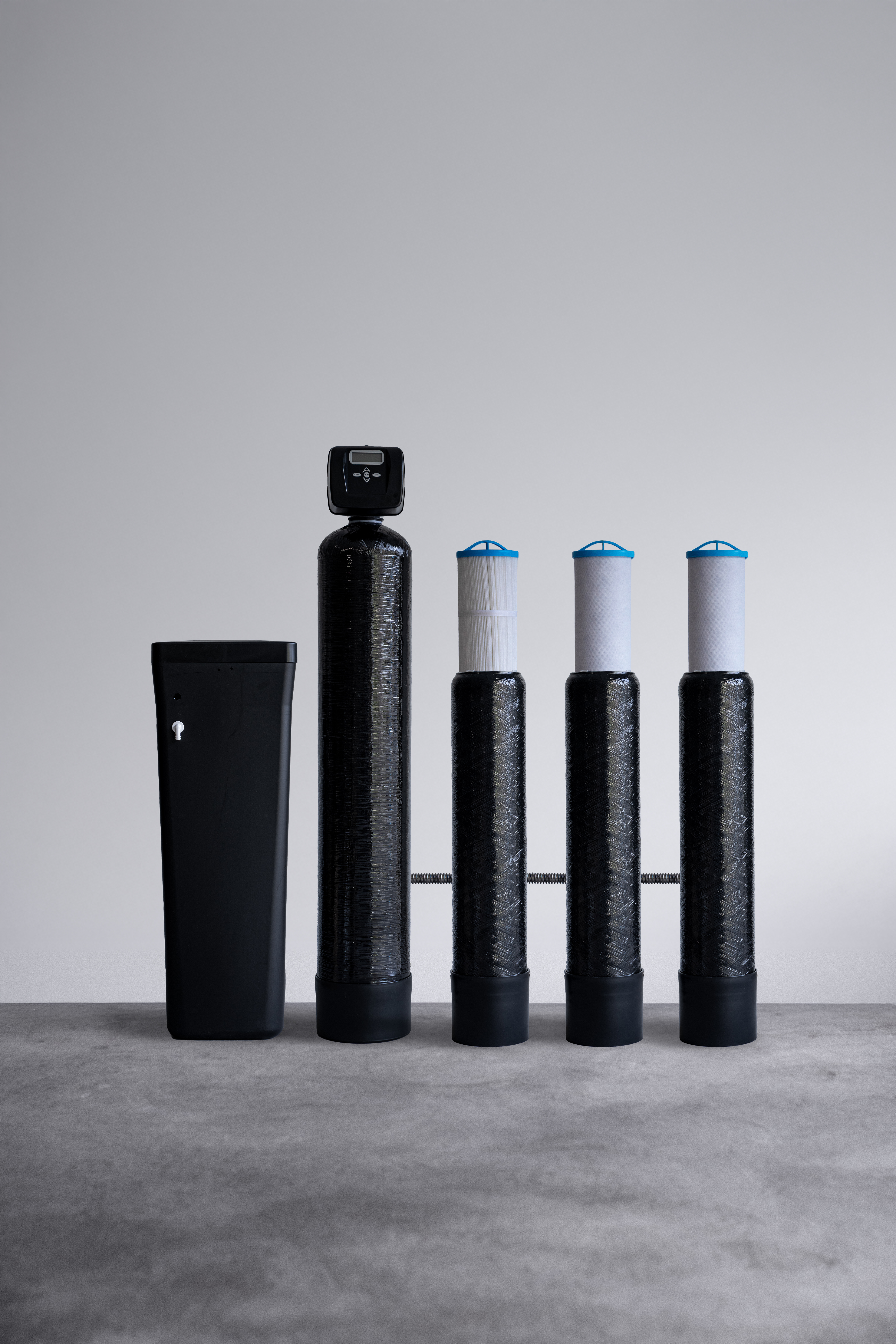

3. Echo Water Pure-Premium | Whole Home Water Filter with Chloramine, Lead & PFAs Filtration

Ideal for: PFAs, Lead, Chloramine, Chlorine, Pesticides, Herbicides, Tastes & Odors

Filtration Stages:

• Filter 1: 50 Micron/20 Micron Double Pleat Cartridge

  • 50 - Visible dirt, rust flakes, sand, and sediment
  • 20 - Fine sand, silt, and some sediment that passed through the 50-micron layer
  • Features: Dual gradient double pleated filters, Double Buna-N O-ring seals, Filter belly bands, Durable polyester filter and polypropylene cap construction
  • Benefits: Extended service life, contaminant removal, and dirt holding capacity, Low pressure drop = high flow, Ensures no bypass of contaminants and high chemical compatibility, Prevent collapsing of filters under high flow or contaminant load applications, Bacteria and chemical resistant
    • Extended Service Life: 6,12, 18, or 24 months vs 1-3!
      • The total surface area of the dual gradient double pleated filter is approximately 100 ft2. A typical single layer 2-1/2" x 20" filter is approx. 7 ft2 of filter media area; a 4-1/2" x 2" is approx. 16 ft2.
      • This 50/20 Micron double pleated cartridge has nearly 6.5x more open area compared to standard 4.5"x20" filters (100 ft2 vs 16 ft2) and nearly 14.5x open area compared to standard 2.5"x20" filters (100 ft2 vs 7 ft2).
      • More open area = a longer service life!

• Filter 2: 20 Micron Standard Carbon Block Filter

  • • Filters Chlorine, Pesticides, Herbicides, Tastes & Odors
    • Filter Performance: Treats >150,000 gallons (567,812 liters) of water at 7 GPM (26.50 LPM) with greater than 90% reduction (estimated capacity using 2 ppm of free chlorine)
    • Features: high porosity/low pressure drop, High-performance carbon, Unique binder system, Proprietary manufacturing process, Outer wrap of polypropylene, Netting of polyethylene
    • Benefits: Exceptionally low pressure drop, High dirt holding capacity, Effective at reducing unwanted bad taste and odor, along with chlorine and chloramine taste and odor from potable drinking water, Excellent contaminant reductions

• Filter 3: 0.5 Micron Carbon Block Filter

  • • Filters: Chloramine, Chlorine, Lead, PFAS, Chloramine, Pesticides, Herbicides, Tastes & Odors


    • Size and Micron Rating	Rated Capacity and Flow Rate	Peak Flow and % reduction of lead and PFOA/PFOS	Chlorine/Chloramine Taste and Odor Reduction Capacity	Pressure Drop Spec
      8' x 40' / 0.5 Microns	Lead reduction and PFOA/PFOS 100,000 gallons @ 4.5` GPM (378,541 Liters @ 17.1 Ipm)	8 GPM (30.2 Ipm) @99.62% lead reduction @97.9% PFOA/PFOS reduction >88,000 gallons at 8 GPM^ (333,116 Liters @ 30.2 Ipm)	>300,000 galloons @ 8GPM (1,135,533 Liters @56.8 Ipm) with grater than 90% reduction, estimated capacity using 2 ppm of free chlorine >150,000 gallons @ 8GPM (567,812 Liters @ 30.3 Ipm) with greater than 85% reduction, estimated using 3 ppm of Chloramine	9 psid @ 4.51 GPM

    • Substance	Influent Challenge Concentration (mg/L)	Max Permissible Product Water Concentration (mg/L), OR Minimum Percent Reduction	NSF/ANSI Standard
      Lead	0.15± 10%	0.005	53
      Cyst	Minimum 50,000/L	99.95%	53
      PFOA/PFOS	1.5± 10%	0.07	53

    •

Key Benefits:

• Removes up to 99.95% of PFOA, PFOS, lead, Giardia, and Cryptosporidium

• Filters both soluble and particulate lead

• Advanced passive filtration for maximum effectiveness

• Long-lasting filters reduce maintenance needs

Why Remove Lead?

• Lead exposure from aging infrastructure is linked to severe health risks, especially for children. This system offers protection by removing nearly all forms of lead and PFAS chemicals.

How It Works:

• Chloramine filter with catalytically active Nitrogen Groups

• Chlorine filter using sustainable carbon

• Lead/PFA filter captures heavy metals and toxic compounds

What's Included

• (1) Water Softener
  • (1) Water Softener
  • (1) Control Valve and Computer
  • (1) Brine Tank
  • (1) ProGaurd Feeder
  • (1) Bottle of ProGuard Solution
  • Connections
• (3) Installation Kit
• (3) Filter Housing
• (1) 20 Micron Carbon Block Filter
• (1) 50 Micron/20 Micron Double Pleat Cartridge
• (1) 0.5 Micron Carbon Block Filter

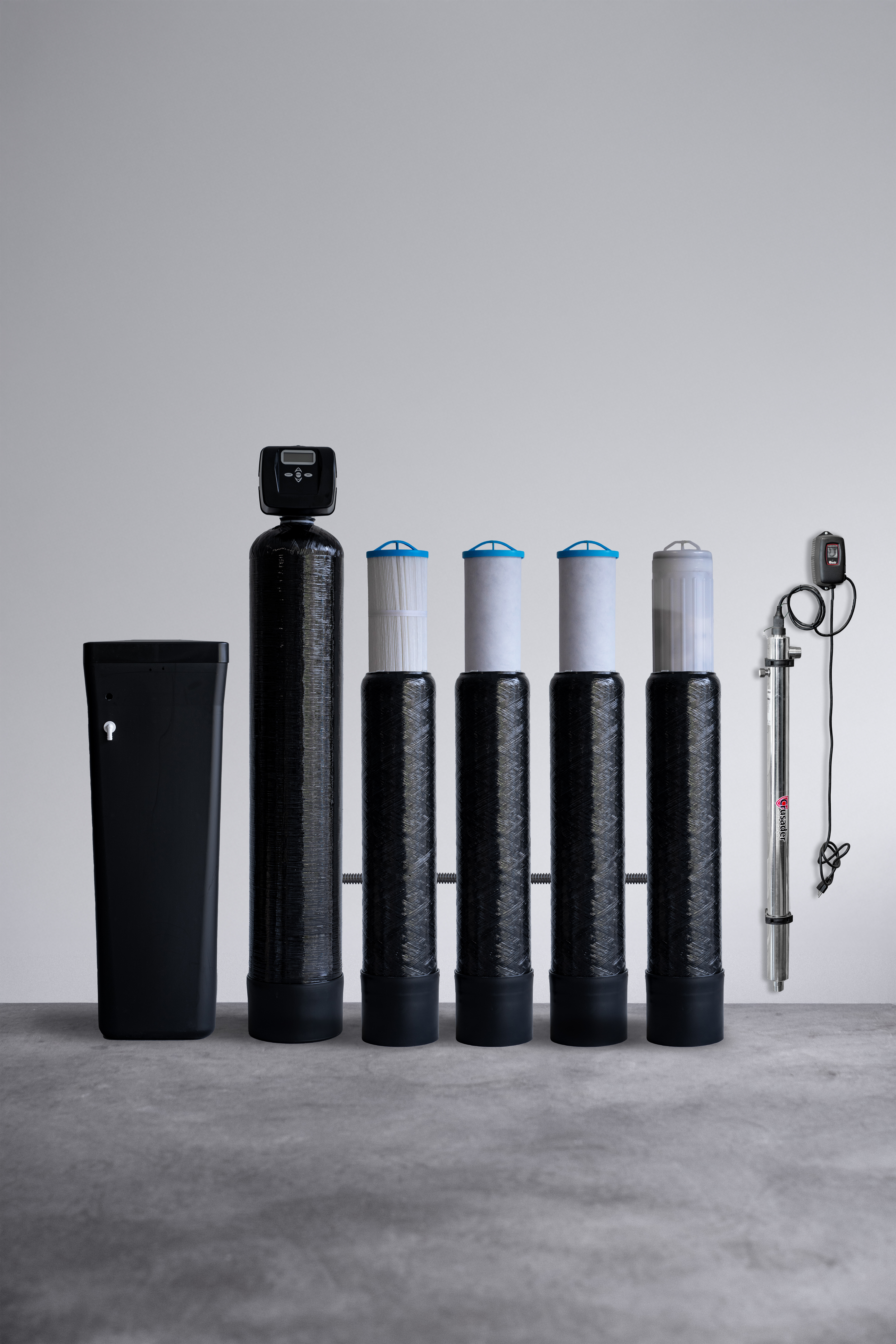

4. Echo Water Pure-Pro | Whole Home Water Filter with Chloramine, Fluoride, Lead & PFAs Filtration, Plus UV Disinfectant

Ideal for: PFAs, Lead, Chloramine, Chlorine, Pesticides, Herbicides, Tastes & Odors, Fluoride.

• Everything in the Echo Water Pure Premium plus a Fluoride Filter and UV Disinfectant.

Filtration Stages:

• Filter 1: UV Disinfectant Filter
  • Continuous Disinfection, Lower Power Consumption
  • Chemical Free Process
  • Fungi, Taste & Odor, Bacteria & Virus, Mold control

• Filter 2: 50 Micron/20 Micron Double Pleat Cartridge

  • 50 - Visible dirt, rust flakes, sand, and sediment
  • 20 - Fine sand, silt, and some sediment that passed through the 50-micron layer
  • Features: Dual gradient double pleated filters, Double Buna-N O-ring seals, Filter belly bands, Durable polyester filter and polypropylene cap construction
  • Benefits: Extended service life, contaminant removal, and dirt holding capacity, Low pressure drop = high flow, Ensures no bypass of contaminants and high chemical compatibility, Prevent collapsing of filters under high flow or contaminant load applications, Bacteria and chemical resistant
    • Extended Service Life: 6,12, 18, or 24 months vs 1-3!
      • The total surface area of the dual gradient double pleated filter is approximately 100 ft2. A typical single layer 2-1/2" x 20" filter is approx. 7 ft2 of filter media area; a 4-1/2" x 2" is approx. 16 ft2.
      • This 50/20 Micron double pleated cartridge has nearly 6.5x more open area compared to standard 4.5"x20" filters (100 ft2 vs 16 ft2) and nearly 14.5x open area compared to standard 2.5"x20" filters (100 ft2 vs 7 ft2).
      • More open area = a longer service life!

• Filter 3: 20 Micron Standard Carbon Block Filter

  • • Filters Chlorine, Pesticides, Herbicides, Tastes & Odors
    • Filter Performance: Treats >150,000 gallons (567,812 liters) of water at 7 GPM (26.50 LPM) with greater than 90% reduction (estimated capacity using 2 ppm of free chlorine)
    • Features: high porosity/low pressure drop, High-performance carbon, Unique binder system, Proprietary manufacturing process, Outer wrap of polypropylene, Netting of polyethylene
    • Benefits: Exceptionally low pressure drop, High dirt holding capacity, Effective at reducing unwanted bad taste and odor, along with chlorine and chloramine taste and odor from potable drinking water, Excellent contaminant reductions

• Filter 4: 0.5 Micron Carbon Block Filter

  • • Filters: Chloramine, Chlorine, Lead, PFAS, Chloramine, Pesticides, Herbicides, Tastes & Odors


    • Size and Micron Rating	Rated Capacity and Flow Rate	Peak Flow and % reduction of lead and PFOA/PFOS	Chlorine/Chloramine Taste and Odor Reduction Capacity	Pressure Drop Spec
      8' x 40' / 0.5 Microns	Lead reduction and PFOA/PFOS 100,000 gallons @ 4.5` GPM (378,541 Liters @ 17.1 Ipm)	8 GPM (30.2 Ipm) @99.62% lead reduction @97.9% PFOA/PFOS reduction >88,000 gallons at 8 GPM^ (333,116 Liters @ 30.2 Ipm)	>300,000 galloons @ GPM (1,135,533 Liters @56.8 Ipm) with grater than 90% reduction, estimated capacity using 2 ppm of free chlorine >150,000 gallons @ 8GPM (567,812 Liters @ 30.3 Ipm) with greater than 85% reduction, estimated using 3 ppm of Chloramine	9 psid @ 4.51 GPM

    • Substance	Influent Challenge Concentration (mg/L)	Max Permissible Product Water Concentration (mg/L), OR Minimum Percent Reduction	NSF/ANSI Standard
      Lead	0.15± 10%	0.005	53
      Cyst	Minimum 50,000/L	99.95%	53
      PFOA/PFOS	1.5± 10%	0.07	53

• Filter 5: Fluoride Filter

  • Fluoride Removal

What's Included

• (1) Water Softener
  • (1) Water Softener
  • (1) Control Valve and Computer
  • (1) Brine Tank
  • (1) ProGaurd Feeder
  • (1) Bottle of ProGuard Solution
  • Connections
• (4) Installation Kit
• (4) Filter Housing
• (1) 20 Micron Carbon Block Filter
• (1) 50 Micron/20 Micron Double Pleat Cartridge
• (1) 0.5 Micron Carbon Block Filter
• (1) Fluoride Filter
• (1) UV Disinfectant

Common Features Across All Echo Systems

Premium Construction:

• FDA-approved materials and NSF 61 Certified Coconut Shell Carbon

• Constructed with high-performance carbon and a durable polyethylene outer wrap

• Minimal pressure drop for consistent water flow

Peace of Mind:

• 10-Year Warranty

• Made in the USA

• Installation guide included

Perfect For:

• Residential homes, commercial buildings, and industrial settings

• Food service and hospitality

• Use as a pre-filter or polishing filter for enhanced purification

Upgrade your home’s water today and enjoy cleaner, safer water for years to come.

You do have the option to just purchase the following add ones:

• Water Softener
• Conditioner
• UV Disinfection
• Fluoride Filter
