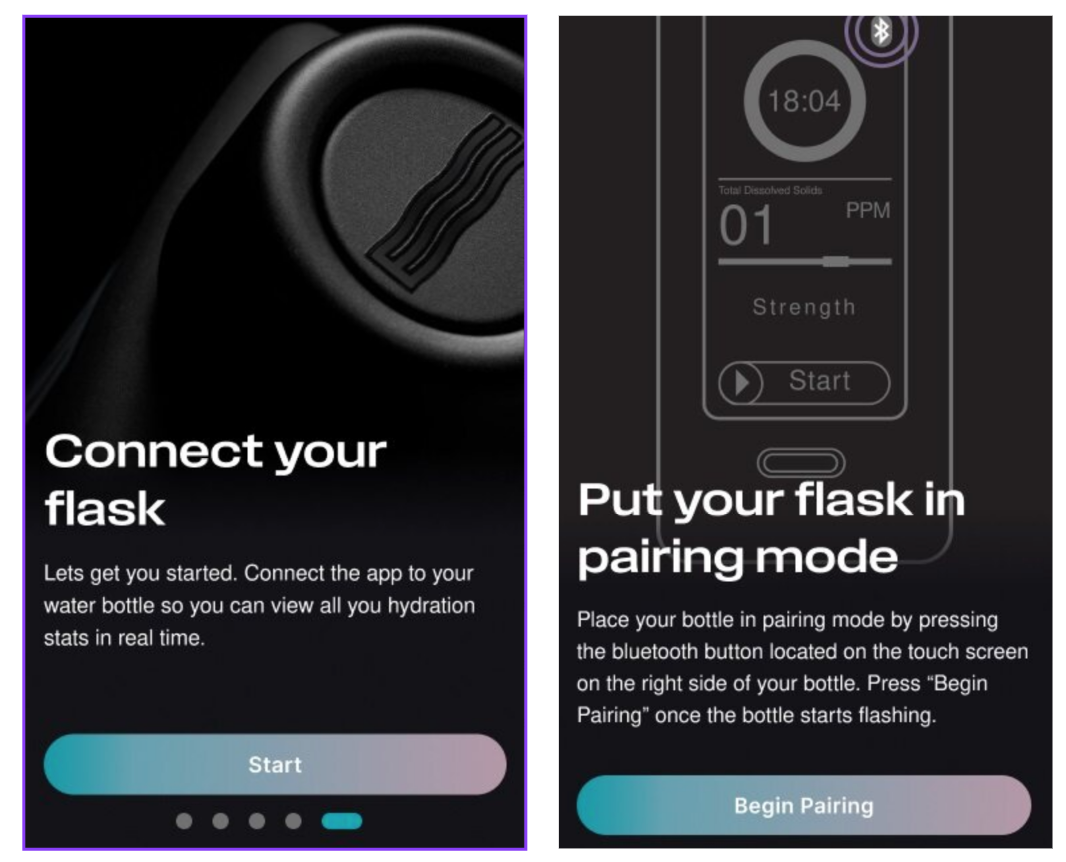

- Connecting your Flask
- Setting goals
- Tracking goals
- Integrations
- Personalization
- Protocols
- Recommended Water Types for Your Echo Flask™
- Hydrogen Water Usage and Benefits
- Getting Started With Hydrogen Water
- Hydrogen Water Consumption and Storage
- Guidelines for Using Hydrogen Water with Cold Water, Heat, and Additives
- Dry Generator or Decreased Performance (No or Fewer Bubbles During Hydrogenation)
- Leaks
- Battery, Charging, and/or Power Issues
- Pressurization
- Sound During the Hydrogenation Cycle
- Miscellaneous
IMPORTANT NOTICE
Your Echo Flask™ may arrive with a small amount of distilled water—this is intentional! It’s part of the design to ensure optimal performance.
If your Echo Flask™ arrives dry, NO WORRIES! It will simply require a 48-hour rehydration period. Fill the bottle with warm, non-chlorinated water and let the internal membranes absorb moisture fully. During this time, you may notice the bubbles transitioning from sporadic large bubbles to a fine mist—this is entirely normal!
NOTE: It may take up to a week of consistently running cycles to get your Flask to achieve a steady flow of bubbles and proper pressurization. If more than a week has passed and your bottle still has trouble producing bubbles or pressurizing, please contact our customer service team at support@echowater.com for more help.
Noticing a hum, crackle, or little hiss from your Echo Flask™? No worries at all—it might sound surprising at first, but it’s all part of the magic in action! Let’s walk through what’s normal and what to look out for, just to give you peace of mind.
Understand the Electrolysis Process
Your Echo Flask™ creates hydrogen-enriched water through a process called electrolysis. This sends an electrical current through the water to separate hydrogen (H₂) from oxygen (O₂)—a safe and efficient way to deliver all the health benefits of molecular hydrogen.
As the flask runs, it’s completely normal to hear:
- A gentle hum
- A sizzling or crackling sound
- A light ticking noise
- The sound may vary during the cycle or with continued use (that's totally ok!) Factors such as the hydration of your PEM, water temperature, or even water type can influence the sound. You may even notice your flask sounds different after use- all are entirely expected and a sign of a healthy generator.
These sounds are simply the result of electrolysis in action and are expected while the flask is working.
⚕️ This product has not been evaluated to diagnose, treat, cure, or prevent any disease. If you have health concerns or need medical guidance, we always recommend chatting with a trusted healthcare professional.
Are you curious about the science behind hydrogen water? At hydrogenstudies.com, you can explore a wide range of studies on its potential benefits—it’s an excellent resource for diving deeper!
For more information, visit our guide: Everything You Need to Know About Hydrogen Water.

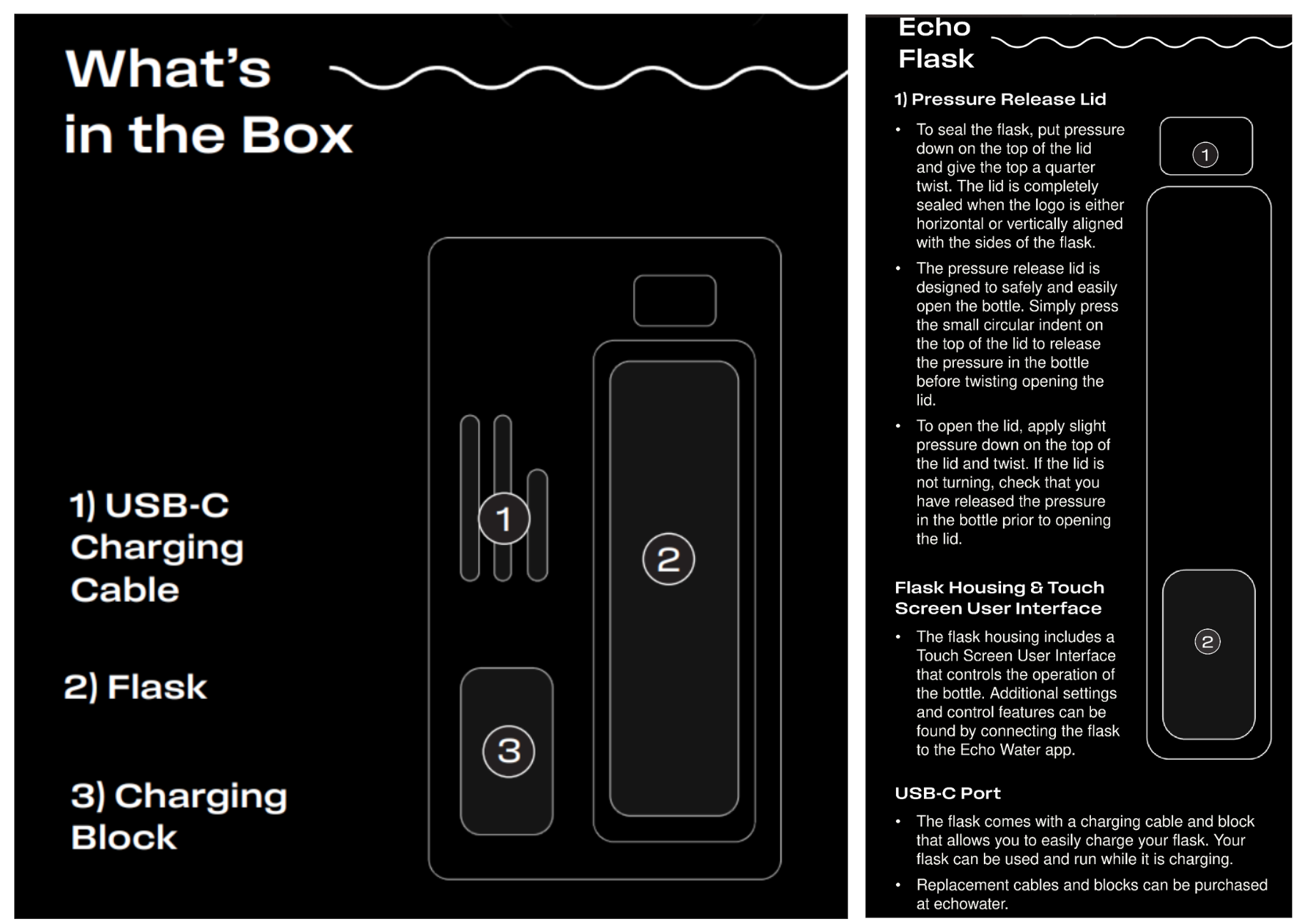

PACKAGE INCLUDES
PRODUCT HIGHLIGHTS
Advanced Technology
The 12-ounce Echo Flask™ incorporates state-of-the-art Solid Polymer Electrolysis (SPE) technology, delivering exceptional performance and safety.
Key Benefits:
- Pure Hydrogen: Produces hydrogen without any harmful byproducts, ensuring safe and clean drinking water.
- Durability: Built for long-term use with consistent, reliable performance.
- Environmentally Friendly: Releases only oxygen into the atmosphere, offering a green and sustainable solution.
Proton Exchange Membrane (PEM)
The Echo Flask™ features a Nafion dual-chambered PEM system designed for optimal performance and safety.
Key Benefits:
- Oxygen Port: Ensures safe and efficient electrolysis by venting oxygen.
- Purity: No chlorine, ozone, or hydroxyl byproducts are produced during hydrogen generation.
- Stable pH: Maintains a neutral water pH with no added acidity or alkalinity.
This advanced PEM technology guarantees clean and effective hydrogenation for consistent health benefits.

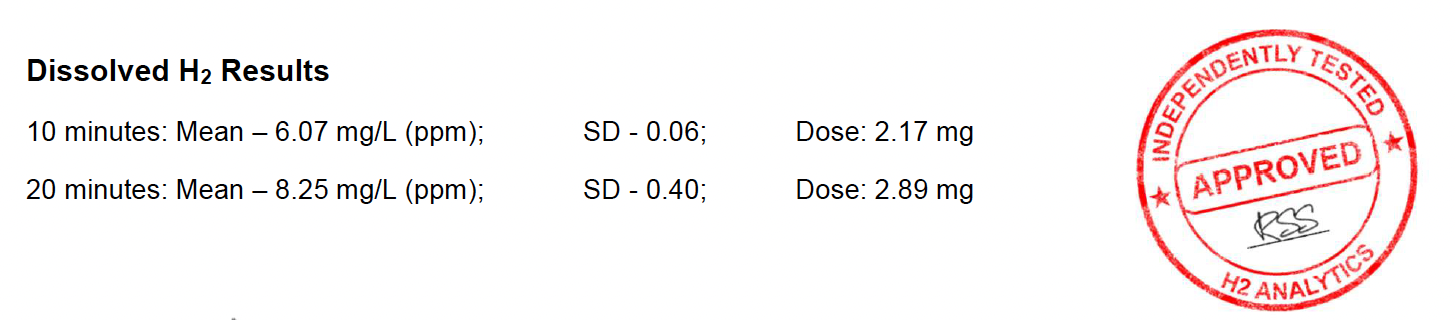

PPM Concentration
The Echo Flask™ generates up to 6 PPM (parts per million) of hydrogen during a 10-minute cycle (default) and up to 8 PPM (parts per million) of hydrogen during a 20-minute cycle (two 10-minute cycles run consecutively), ensuring therapeutic levels of hydrogen-rich water.
Key Features
- Flexible Timing: Adjust the cycle duration to suit your needs. Shorter cycles are available for quicker hydrogenation.
- Real-Time Notifications: The flask displays the hydrogen concentration (PPM) based on the selected cycle length, keeping you informed of the water's hydrogen levels.
Touchscreen User Interface
The Echo Flask™ features a Touchscreen User Interface built into its housing, allowing you to easily control the bottle's operation.
Additional Features:
- Enhanced Control: Pair your flask with the Echo Water App to access additional settings and control features, offering a more personalized experience.
Gas Separation
The Echo Flask™ uses an innovative process to separate hydrogen and oxygen gas during hydrogenation:
- Oxygen Gas (O2): Safely released into the atmosphere, ensuring no unwanted byproducts remain in the water.
- Hydrogen Gas (H2): Dissolved directly into the water, creating hydrogen-rich water designed for therapeutic benefits.
This process ensures your water is infused with high levels of therapeutic hydrogen while maintaining the highest safety and efficiency standards.
Electrode Plates
The Echo Flask™ is equipped with platinum-coated titanium electrode plates to deliver optimal performance and maintain water purity.
Key Features:
- Durable Materials: The platinum coating ensures long-lasting durability and high efficiency.
- No Direct Contact: The electrode plates are designed to never come into contact with the water, guaranteeing the purity and safety of every sip.
This innovative design upholds the highest hydrogen generation and water quality standards, ensuring a safe and effective experience with every use.
PPSU Bottle Construction
Inside of the Echo Flask™ (Water Contact Surface):
- Material: Polyphenylsulfone (PPSU) plastic.
-
Key Benefits:
- BPA-Free: Free of BPA, BPS, and other harmful chemicals for long-term, safe use.
- FDA-Approved: Certified by the FDA for safety.
- Trusted Material: Commonly used in medical devices, baby bottles, and lab equipment due to its durability and chemical stability.
- Durable: Scratch-resistant, lightweight, and temperature-resistant, capable of withstanding varying temperatures without degrading or releasing harmful substances. Please keep away from extreme heat or cold surfaces. Damage due to scratches or heat/cold exposure is not covered under warranty.
- Safety: PPSU was chosen to ensure safety and longevity, especially under the pressure required for true hydrogen production. Unlike glass, which can shatter or even explode under high pressure, PPSU offers a durable and secure solution.
- Non-toxic: Resists absorbing odors, stains, or colors, keeping your water pure.
- Eco-Friendly: PPSU is recyclable and has a lower environmental impact than many other plastics.
Flask Housing (Outer Layer):
- Material: Thermoplastic urethane (TPU).
-
Key Benefits:
- Flexible Durability: TPU is tough and flexible, making it resistant to wear and tear over time.
- Scratch and Abrasion Resistance: The housing usually remains smooth and intact even with regular use. Although the Echo Flask™ is scratch-resistant, it is not scratch-proof, and scratches are not covered under warranty.
- Temperature Stability: The Echo Flask™ is designed to handle varying temperatures without cracking or warping. Please keep away from extreme heat, cold, or humid environments. Damage from heat/cold or humidity exposure is not covered under warranty.
- Eco-Friendly: TPU is recyclable and has a lower environmental impact than other plastics.
- Comfortable Grip: Its soft yet sturdy texture provides a secure and comfortable grip.
Battery
The Echo Flask™ is equipped with a rechargeable 2000 mAh lithium-ion battery, enabling efficient and portable hydrogen generation.
Key Features
- Rechargeable: It provides a convenient and eco-friendly power solution that is ideal for on-the-go use.
- High Capacity: The 2000 mAh battery supports approximately 5–7 cycles at 10 minutes each—or around 3–4 cycles if you prefer the 20-minute option. Please note that after receiving the low battery advisory message, you will be able to run 1-2 complete 10-minute cycles. If you feel that your battery is dying quickly, please see the Battery, Charging, and/or Power Issues troubleshooting.
- Air Travel
*Please refer to the Echo Flask™ Product Specifications section for further detailed information.
RETURN TO TABLE OF CONTENTS
SAFE USE OF ECHO FLASK
Water and Additives
- Reverse Osmosis, Distilled, Spring, or Filtered water is recommended. Do not use carbonated or non-water beverages.
- Do not directly add supplements, minerals, or flavoring to the flask; use a separate container.
- For optimal benefits, consume hydrogenated water within 2 hours. However, the lid's design minimizes hydrogen escape, allowing the water to maintain similar PPM levels even if left overnight.
Operation and Charging
- Do not disassemble, modify, or repair the Echo Flask™; this will void your warranty.
- Avoid excessive force or impacts; contact customer support if the flask is dropped or damaged.
- Do not operate the generator without water in the flask.
- To get the best performance from your device while it’s charging, we recommend limiting it to about 1–2 cycles of 10 minutes each. Once fully charged, your device can power through approximately 5–7 cycles at 10 minutes each—or around 3–4 cycles if you prefer the 20-minute option. NOTE: After receiving the low battery advisory message, you will be able to run 1-2 10-minute cycles.
- If the electrodes have been dry or unused for one week or longer, rehydrate the flask (see the "Initial Set Up: Rehydration" section in this manual)
- Ensure only manufacturer-certified replacement parts are used.
- Avoid touching the charging cord or USB-C input with wet hands.
- For your safety (and to keep your flask working like a champ!), please avoid using frayed, broken, melted, or cracked charging cords or charging blocks. Using damaged accessories can be risky and may affect your flask's performance.
Storage, Cleaning, and Maintenance
- Keep the electrode plate wet with one tablespoon of water; do not store it completely dry. If your bottle dries out, it will need to be rehydrated.
- Avoid storing with excessive water to prevent mold or mildew.
- Leave the cap off briefly after use to allow moisture to dissipate.
- When cleaning, use citric acid or white vinegar only. Avoid chemicals or dish detergent.
- Do not clean the interior of the flask with chemicals; this can damage the electrodes. Only vinegar or citric acid should be used.
- Do not soak or submerge the flask or cap in water.
-
Handwash only; do not place any component in the dishwasher.
Safety and Handling
-
Ensure the lid is tightly secured before starting a hydrogenation cycle. An unsecured lid could cause the lid to forcefully pop off due to the residual pressure, resulting in damage to your flask and/or injury. (See the Operating Your Echo Flask™ section for more in-depth directions.)
• Always release the pressure after a hydrogenation cycle prior to opening the bottle. -
Always release built-up pressure before opening the bottle after a hydrogenation cycle. Skipping this step could cause the lid to forcefully pop off due to the residual pressure, resulting in damage to your flask and/or injury. (See the Operating Your Echo Flask™ section for more in-depth directions.)
- Always keep the Echo Flask™ out of reach of children and pets to ensure their safety and prevent accidental damage to the device.
- Avoid heat, flames, and hot or humid environments (e.g., saunas, hot vehicles).
- Avoid direct sunlight or heat that could dry out the electrode plate.
- Do not place the Echo Flask™ on non-waterproof surfaces to avoid potential damage in the event of a leak.
- Do not microwave, refrigerate, or freeze the Echo Flask™.
INITIAL SETUP: REHYDRATION
Your Echo Flask™ may arrive with a small amount of distilled water—this is intentional! It’s part of the design to ensure optimal performance.
If your Echo Flask™ arrives dry, NO WORRIES! It will simply require a 48-hour rehydration period. Fill the bottle with non-chlorinated water and let the internal membranes absorb moisture fully. During this time, you may notice the bubbles transitioning from sporadic large bubbles to a fine mist—this is entirely normal!
It may take up to a week of consistently running cycles to get your Flask to achieve a steady flow of bubbles and proper pressurization. If more than a week has passed and your bottle still has trouble producing bubbles or pressurizing, please contact our customer service team at support@echowater.com for more help.
Step 1: Initial Setup & Quick Guide
- Fill the bottle with warm, filtered water.
-
Secure the cap before starting a cycle (ensure the lid is securely tightened, with the logo positioned perpendicular or horizontal to the flask). You may feel some resistance in the lid when closing; however, you must continue to twist until you hear a "click." This will ensure the lid is in position.
NOTE: The lid on your flask features a unique design that’s a little different from the traditional screw or threaded lids. Instead, it features tabs inside—kind of like a pressure cooker—that “lock” into place as pressure builds up. - Run a 10 or 20-minute hydrogen cycle.
-

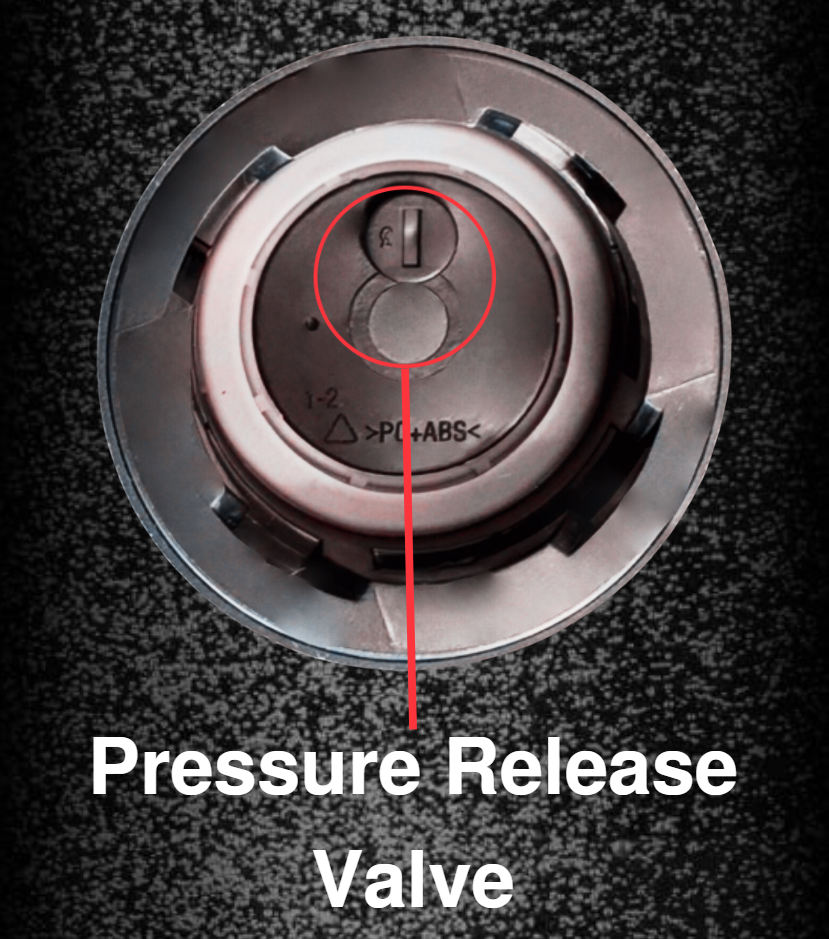

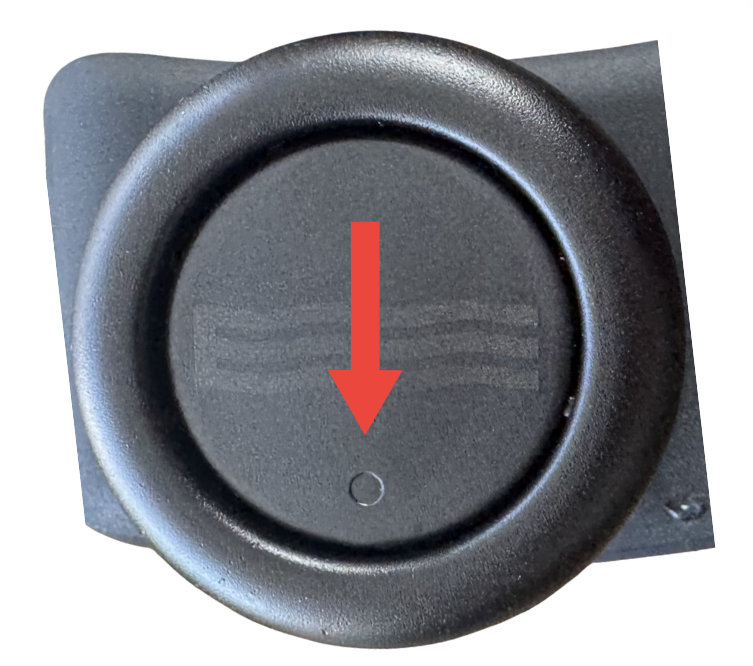

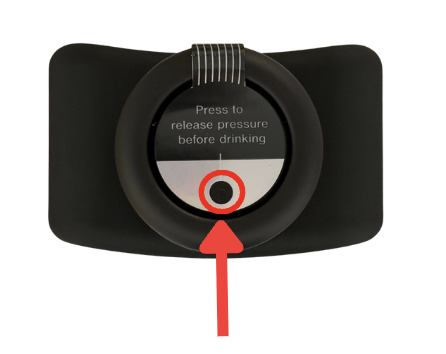

Before opening your flask, always release the pressure first! Find the top of the cap, look for the spot marked with a circle, and press straight down on that area. Pressing the middle or the opposite side will not release the pressure correctly.
- When the pressure releases, you may hear anything from a faint hiss to a louder pop—both are normal! You should also see bubbles rising to the top, which confirms pressurization.
NOTE: See Pressurization troubleshooting if you do not hear a pressurization release. - Discard the water & rinse the flask with filtered water. It's now ready for your first hydrogen cycle!
Step 2: Accelerate Hydrogenation (if needed)
If your flask doesn’t produce enough bubbles initially, don't worry! This can happen if it is new, hasn’t been used for a while, or has become a little dry and needs rehydration.
- Soak the bottle membranes (inside of the bottle) in hot water overnight. Never fully submerge your bottle in water.

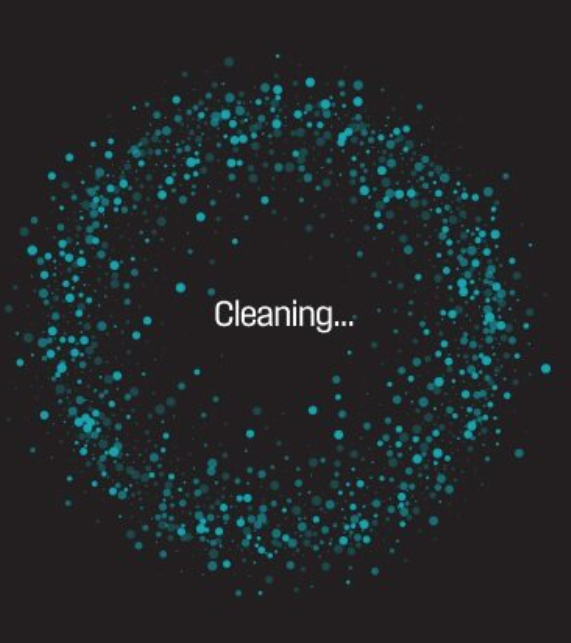

- Run a cleaning cycle, discard the water, and refill with filtered water.
- Your Echo Flask™ will then be fully primed for peak performance!
It may take up to a week of regular use to fully rehydrate the electrode and achieve a consistent bubble flow. If you see progress, this means your Flask is working properly.
🎥 Echo Flask First-Use Instruction Video
OPERATING THE ECHO FLASK™
1. Removing the Lid
The lid on your new product may feel a bit snug initially, but this is normal and will ease over time as it breaks in.
-
Before opening your flask, always release the pressure first! Find the top of the cap, look for the spot marked with a circle, and press straight down on that area. Pressing the middle or the opposite side will not release the pressure correctly.
- When the pressure releases, you may hear anything from a faint hiss to a louder pop—both are normal! You should also see bubbles rising to the top, which confirms pressurization. NOTE: See Pressurization troubleshooting if you do not hear a pressurization release.
-
To open your flask safely, gently push down on the lid and twist it counterclockwise to unlock. The lid is specially designed to “lock” into place as internal pressure builds—kind of like a child-proof medication bottle—so you’ll need to apply a little downward pressure while twisting to release it. It’s all part of keeping things secure while your flask does its thing!
NOTE: For your safety, please avoid placing your fingers underneath the lid while twisting it open—the bottom edge can feel a bit pointed. Instead, we recommend gripping the sides of the lid securely as you twist. This makes opening your flask both safe and comfortable! -
The lid will become more comfortable to handle and open with use, ensuring a smooth and enjoyable experience!
🎥 Helpful Video
- How to Remove the Lid (2:32)
- How to Remove the Gasket/Seal (0:39)
- How to Properly Reinsert the Gasket/Seal (1:04)
- How to Put the Lid Back On (2:18)

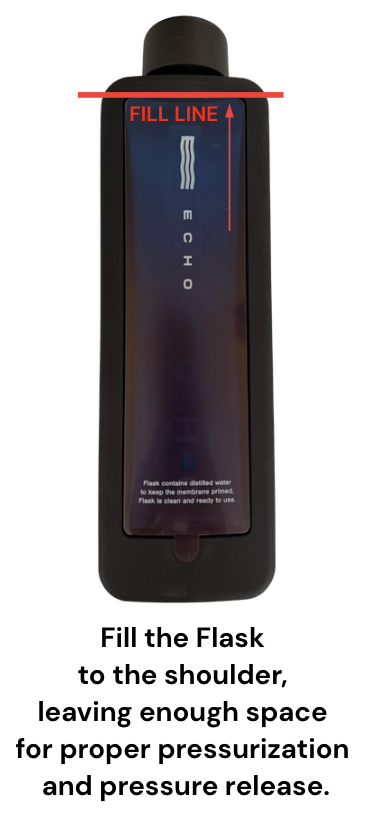

2. Fill the Flask
- For optimal performance, use filtered, distilled, or reverse osmosis water. Avoid tap water, as its high mineral content can lead to buildup and reduced performance.

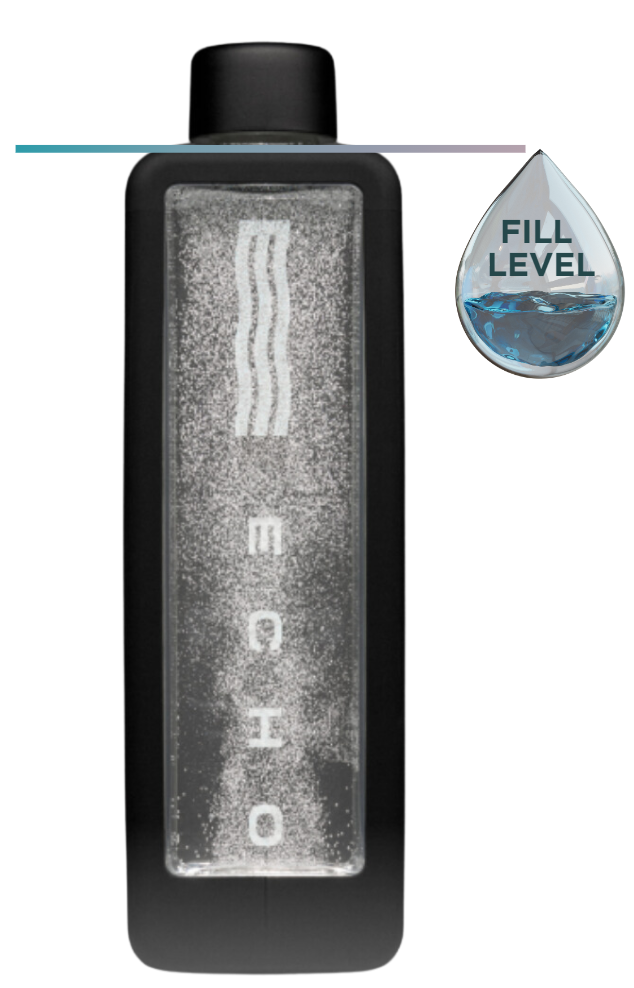

- Fill to the top of the bottle's shoulder (no liquid should be visible in the spout).
3. Seal the Lid
- Apply downward pressure while twisting the lid to close it to the right.
- Secure the cap before starting a cycle (ensure the lid is securely tightened, with the logo positioned perpendicular or horizontal to the flask). You may feel some resistance in the lid when closing; however, you must continue to twist until you hear a "click." This will ensure the lid is in position.
NOTE: The lid on your flask features a unique design that’s a little different from the traditional screw or threaded lids. Instead, it features tabs inside—kind of like a pressure cooker—that “lock” into place as pressure builds up.
4. Activate Hydrogen Generation
- Wake the Touch Screen: Tap the screen to activate the display.
- Unlock the Interface: Swipe up on the screen.
- Start Hydrogenation: Press the play button to initiate a 10-minute cycle (default setting).
- Tap the "+ or—" options on the timer to lengthen or shorten the cycle duration. Each tap increases or decreases the duration by 1 minute.
- Auto-Lock Feature: If no adjustments are made, the screen locks automatically after 3 seconds. Swipe up to unlock.
5. Cycle Completion

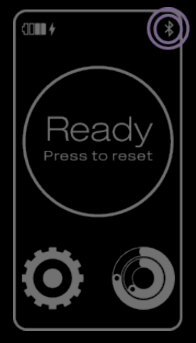

- At the end of the cycle, the flask will display a “Ready” message.
Note: If you would like alerts on your device, you can adjust the sound settings in the Echo Water app.
6. Stopping a Cycle Early
- Press and hold the stop button for 3 seconds to terminate the cycle prematurely.
Note: Cycles stopped before 2 minutes will not count toward drinking goals in the Echo Water app. - To reduce cycle time, tap the time display, and it will decrease it by a minute.
7. Release Pressure Before Drinking
-
Before opening your flask, always release the pressure first! Find the top of the cap, look for the spot marked with a circle, and press straight down on that area. Pressing the middle or the opposite side will not release the pressure correctly.
- When the pressure releases, you may hear anything from a faint hiss to a louder pop—both are normal(if pressed right after the cycle finishes)! You should also see bubbles rising to the top, which confirms pressurization.
NOTE: See Pressurization troubleshooting if you do not hear a pressurization release. -
To open your flask safely, gently push down on the lid and twist it counterclockwise to unlock. The lid is specially designed to “lock” into place as internal pressure builds—kind of like a child-proof medication bottle—so you’ll need to apply a little downward pressure while twisting to release it. It’s all part of keeping things secure while your flask does its thing!
NOTE: For your safety, please avoid placing your fingers underneath the lid while twisting it open—the bottom edge can feel a bit pointed. Instead, we recommend gripping the sides of the lid securely as you twist. This makes opening your flask both safe and comfortable! -
The lid will become more comfortable to handle and open with use, ensuring a smooth and enjoyable experience!
NOTE: If you are experiencing leaking, please see the Leaks troubleshooting.
🎥 How to Use Your Echo Flask Video
CHARGING
1. Identify When Charging Is Needed
- The battery icon in the top left corner of the screen shows the need for charging by gradually losing bars and changing color from green to yellow to red.

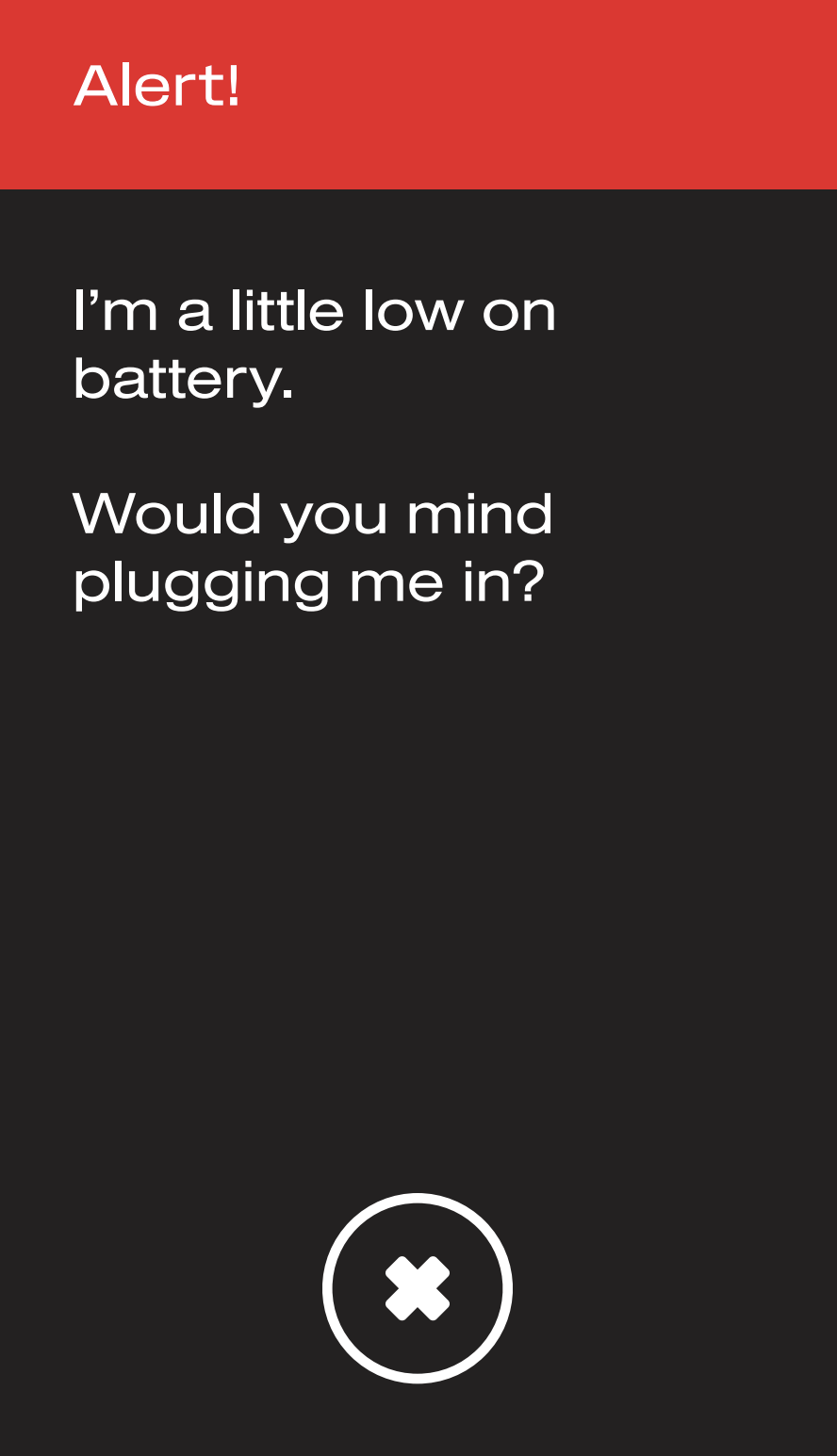

- When your flask needs to be charged, you will receive a battery advisory message on the touchscreen. Once you receive this message, you can still run up to 1-2 10-minute cycles before the hydrogenation function is interrupted.

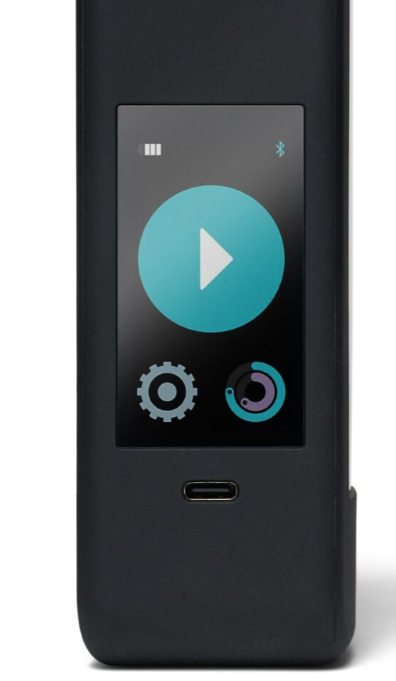

2. Locate the Charging Port

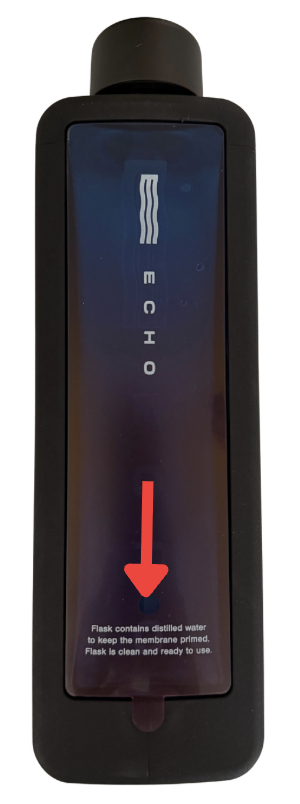

- You can find the USB-C charging port located under the display screen.
3. Connect the Charger
- Plug the USB-C cable into the port on the generator.
- Connect the other USB-C end of the cable to a 5V—2A charger block and plug it into a wall outlet. If your Echo Water charging block is not available, any USB-C charging block will work.
4. Monitor Charging Progress
-
If the screen is locked, the display will show a flashing battery icon while the unit charges. Once charging is complete, the icon will display four full bars and stop flashing.
-
If the screen is unlocked, a lightning bolt will appear next to the battery icon in the top left corner to indicate charging. When fully charged, the battery icon will show four full bars, and the lightning bolt will remain visible while plugged in.
5. Unplug the Device After Charging
- Unplug the Echo Flask™ when charging is complete to avoid potential battery damage or overheating, which could harm the device, melt the cord, or pose a fire risk.
Warranty Note: The charging cord/box and device battery are not covered under warranty. Follow proper charging practices to ensure longevity. If you need a replacement charging cord or block, any aftermarket USB-C to USB-C cord or block will work.
NOTE: If you suspect that your battery is draining quickly, please refer to the Battery, Charging, and/or Power Issues troubleshooting section.
CLEANING & MAINTENANCE
When Using Water With No Mineral Content (RO or Distilled Water)
- Regular Cleaning: Weekly
- Descale: Once a Month
When Using Water With Low/Moderate Mineral Content (Filtered Water)
- Regular Cleaning: Weekly
- Descale: Twice a Month
When Using Water With High Mineral Content (Spring or Well Water)
- Regular Cleaning: Weekly
- Descale: Weekly
Regular cleaning ensures optimal performance and extends the lifespan of your Echo Flask™. Follow the instructions below for effective cleaning:
Flask Cleaning(Regular Cleaning)
- Prepare the Cleaning Solution: Fill the flask 1/3 full with white vinegar and 2/3 full with warm, filtered water.
-
Run the Cleaning Cycle: Select the Cleaning Cycle button in the Settings menu. The flask will run a cleaning cycle.
- Rinse Thoroughly: Dispose of the cleaning solution and rinse the flask with warm, filtered water to remove any residue.
- Tip: Clean your flask weekly to prevent mineral buildup on the hydrogen generator.
Flask and Cap Care
- Hand Wash Only: To prevent scratches, clean the Echo Flask™ and cap using warm water and vinegar. Avoid abrasive cloths or sponges. Any silicone bottle brush that would accommodate a 1" opening and is at least 12" in length would work perfectly to clean the inside of your flask.
-
Protect the Pressure Release Valve: Avoid submerging the cap, as water may seep through the pressure release valve.
- No Soap or Detergent: Do not use soap or any detergent to clean your flask, as they will damage the hydrogen generator.
- Do not use tools or devices to pry your cap open; this may cause scratches or damage to your cap, which will not be covered under warranty.
- Keep Outside Components Dry: Ensure the generator’s electrical components and charging port remain dry at all times.
Note: Never Use a Dishwasher: Placing Echo products in the dishwasher will cause damage, which is not covered under warranty.
Deep Cleaning & Descaling Instructions
1. Prepare the Cleaning Solution
- Mix 1 part white vinegar or citric acid (powder or liquid) with 3 parts water.
- Do Not Use: Apple cider vinegar or other cleaning solutions.
2. Soak the Generator
- Pour the solution into the flask and allow it to soak for 2–3 hours.
- For stubborn buildup, odor, taste, or grime, soak overnight.
3. Final Rinse
- Discard the cleaning solution and rinse the flask thoroughly with warm, filtered water.
- Fill the flask with fresh, clean water and run a 5–10 minute cycle to flush out any remaining cleaning solution. Discard the water after the cycle.
4. Cleaning the Gasket
- Please carefully use tweezers to remove the gray gasket from the lid, making sure not to puncture it.
- Please make sure that the gasket and surrounding areas are clean from debris.
- Reinsert the gasket into the lid, ensuring the "line" side faces inward as you place it back into position.
ECHO FLASK™ TECHNOLOGY
Echo Flask™ Settings and Tracking Features
Light/Dark Mode
- Description: Switch between light and dark display modes through the settings menu.
- Benefits: Customize the interface to suit your lighting preferences.
Bluetooth Pairing
Connect or disconnect your flask from the Echo Water App.
- Press the Bluetooth button on the touchscreen to enter pairing mode.
- Press "Begin Pairing" in the app once the bottle starts flashing.
- Pairing instructions and QR codes are also included in the packaging.
Benefits: Enables syncing with the Echo Water app for advanced tracking and control.
Cleaning Mode
- Description: Run a cleaning cycle. For more detailed instructions, refer to this manual's Cleaning & Maintenance section.
-
Benefits: Keeps the generator clean and performing optimally.
Power Off (Sleep Mode)
The Power Off option lets you manually stop a generation cycle and return the flask to the home screen via the settings menu. However, selecting Power Off does not entirely turn off the flask. Instead, the device will remain on the home screen until it automatically enters Sleep Mode after a period of inactivity. The flask will only fully power down when the battery is depleted.
Benefits:
- Conserves Battery Life: Reduces power consumption when the flask is not in use.
- Prevents Unnecessary Operation: Ensures the flask does not continue running an active cycle when not needed.
- Easy Reactivation: The flask can quickly resume operation when needed without requiring a full restart.
1. To activate Power Off, navigate to the settings menu by cleaning the gear icon.
2. Select the "Power Off" option. The screen will automatically return to the swipe screen before entering sleep mode.
Tracking Your Goals
Molecular Hydrogen
- Description: Tracks hydrogen generated, measured in milligrams (mg). 1 PPM equals 1 milligram (mg) of hydrogen per liter (L) of water
- With Pairing: View detailed stats in the app for more precise monitoring.
Hydrogen Cycles
- Description: Logs the total number of hydrogenation cycles completed.
- With Pairing: See the cycle history and trends over time.
Water Consumption
- Description: Measures the total water consumed in ounces (oz).
-
With Pairing: Set hydration goals and monitor progress through the app.
Usage Streak
- Description: Tracks consecutive days of flask use to encourage consistency.
- With Pairing: Receive streak reminders and motivational badges in the app.
🎥 How to Use the Flask Interface Video
ECHO WATER APP
Please take a look at our overview of the App in our Echo Water App Guide.
You can also review helpful individual articles regarding the App:
Signing up / logging in
Connecting your Flask
Setting goals
Tracking goals
Integrations
Personalization
- How to Edit Your Profile
- How do I start/stop a cycle on my flask from the app?
- How do I start a Cleaning Cycle from the App?
Protocols
The Echo Flask warranty does not cover app or firmware-related issues. The Echo Water App may occasionally experience temporary disruptions during development and updates. However, this does not indicate a defect in the bottle itself, as it will continue to produce hydrogen as intended.
RETURN TO TABLE OF CONTENTS
HYDROGEN WATER GUIDELINES
Recommended Water Types for Your Echo Flask™
RO (Reverse Osmosis) Water: Purified through reverse osmosis to remove impurities and contaminants.
- Why? Ensures high water quality and protects the generator from buildup.
Distilled Water: Water that has been boiled into vapor and condensed back into liquid, leaving impurities behind.
- Why? Prevents mineral deposits and optimizes hydrogen generation.
Spring Water: Natural water sourced from springs is typically low in harmful contaminants.
- Why? Provides a clean and safe option for everyday use.
Filtered Water: Water is filtered to remove common impurities, including sediments and chlorine.
- Why? Maintains water purity and safeguards the flask's components.
Well Water: Water sourced from private or public wells requires proper filtration to remove sediments and iron.
- Why? When filtered appropriately, it provides a safe and sustainable option for everyday use.
While tap water can be used, it contains unknown chemicals and minerals that may reduce the flask’s lifespan and potentially cause health issues. An increased buildup could also necessitate more frequent cleaning.
Use filtered, reverse osmosis (RO), or distilled water whenever possible for the best experience and longevity of your flask.
Hydrogen Water Usage and Benefits
Therapeutic Levels: The Echo Flask generates up to 6 PPM (parts per million) of hydrogen during a 10-minute cycle (default) and up to 8 PPM of hydrogen during a 20-minute cycle (two 10-minute cycles run consecutively), ensuring therapeutic levels of hydrogen-rich water.
Optimal Intake:
- Aim for 3-6 bottles daily to experience potential health benefits.
- Drink hydrogen water 30 minutes before or after meals for best absorption.
Exclusivity Not Required
- Hydrogen water can be your primary water source, but it doesn't need to make up your entire daily intake.
- Your body expels excess hydrogen naturally.
Tracking Your Progress
- Consistency is Key: Benefits may take several months of regular use to become fully apparent.
- Journal Your Changes: Track improvements in areas like sleep quality, joint health, digestion, energy, and mental clarity.
- Individual Results Vary: Effects depend on your unique health and chemical makeup, and benefits may develop partially or fully over time.
Getting Started With Hydrogen Water
Start Low and Build Gradually
- Begin with 4-6 ounces of hydrogen water daily if you're new to it.
- Mild detox effects such as headaches, sleeplessness, or bloating may occur, but typically subside as your body adjusts.
- Gradually increase intake as your body becomes accustomed to hydrogen water.
Stay Consistent
- Incorporate hydrogen water into your daily routine.
- Drink at regular intervals, either 30 minutes before meals or 30 minutes after meals.
- Consistency is key to achieving optimal results.
Consult a Healthcare Professional
- If you have health concerns or medical conditions, consult your doctor for personalized advice before starting hydrogen water.
- For more information, visit our guide: Everything You Need to Know About Hydrogen Water.
Hydrogen Water Consumption and Storage
Immediate Use
- Consume hydrogen water immediately after hydrogenation for the highest hydrogen concentration and maximum benefits.
- Retains therapeutic hydrogen levels for up to 24 hours, but the concentration gradually decreases over time.
- Do not microwave, refrigerate, or freeze the Echo Flask™.
Open Glass
- Retains hydrogen for up to 2 hours in an open, unsealed container.
- Tip: Immediate consumption ensures the highest hydrogen concentration.
Water Bottle
- A sealed, insulated water bottle retains hydrogen for 2–5 hours, even when periodically opened.
- The highest concentration occurs within the first 2 hours.
Sealed Container
- A full, sealed, airtight container slows hydrogen loss, decreasing by approximately 0.1 ppm per day.
- Hydrogen water stored in this manner remains effective for up to 2 weeks, depending on the initial ppm concentration.
Note: Avoid storing hydrogen water in copper containers. Copper reacts with hydrogen, reducing its effectiveness and benefits.
Guidelines for Using Hydrogen Water with Cold Water, Heat, and Additives
Cold Water
- Adding ice to hydrogen water is perfectly fine and does not significantly impact its hydrogen content.
- Temperature Effects: Cool water helps keep hydrogen dissolved for a longer period, but excessive stirring or pouring may cause hydrogen to escape.
- Do not microwave, refrigerate, or freeze the Echo Flask™.
Heating Water
- Use warmed, non-boiling, filtered water in your Echo Flask™, ensuring it is plain water without additives.
-
For Hot Beverages (e.g., coffee or tea):
1. Hydrogenate the water first.
2. Heat the water after hydrogenation.
3. Mix or steep in a separate container. - Heat Effects: Heating may slightly reduce hydrogen levels, but the therapeutic benefits remain.
Additives
- Never add supplements, minerals, or flavorings directly to the Echo Flask. It is designed to work exclusively with standard, non-carbonated water.
- Mix in Another Container: Hydrogenate the water in a separate container before adding flavors, minerals, or supplements.
- Tip: Adding supplements may displace some hydrogen molecules, so a slight increase in water intake may be necessary to achieve the same benefits.
TROUBLESHOOTING
If you're experiencing issues with your Echo Flask™, please try the steps below to resolve common concerns. If the problem persists or you have further questions, our Echo Support Team is here and ready to assist you.
➡️ Troubleshooting: Dry Generator or Decreased Performance (No or Fewer Bubbles During Hydrogenation)
If your Echo Flask™ generator is underperforming, follow these steps to rehydrate it:
1. Fill the Bottle: Carefully pour warm, filtered water into your Echo Flask™, filling it to the designated fill level.
2. Let sit for 24-48 Hours: Allow the warm water to sit in the bottle for 24-48 hours to rehydrate the generator.
3. Discard the Water: Pour out the water after complete rehydration.
4. Add Fresh Water: Refill the bottle with clean, filtered water.
5. Run a Second Cycle: Start a 5–10 minute hydrogenation cycle with the fresh water.
Results: After rehydration, your Echo Flask™ should display:
- More fine bubbles during hydrogenation.
- Enhanced hydrogen generation functionality.
NOTE: It may take up to a week of consistently running cycles to get your Flask to achieve a steady flow of bubbles and proper pressurization. If more than a week has passed and your bottle continues to have trouble producing bubbles or pressurizing, please contact our customer service team at support@echowater.com for further assistance.
➡️ Troubleshooting: Leaks
Overfilling
- Avoid overfilling the bottle. Only fill to the top of the bottle's shoulder (no liquid should be visible in the spout).
- Overfilling may cause spills or leaks, especially during the hydrogen generation process.
Leaks from Generator (Base):
- If a drip is observed from the small hole (oxygen port) near the serial number on the bottom:
- Release any pressure within the flask.
- Place the bottle upright to allow trapped water to drain out.
- A leak from this area may occur if the bottle has been jostled or too much pressure has been built in the flask, causing water to trap near the oxygen port. Once drained, the leaks should stop.
Note: This type of leak does not affect the bottle's performance. After draining, the bottle should function normally.
Leaks from Lid and/or Cap:
- Initial Leak: This may occur when the membrane is dry or idle for an extended period. Run several cycles to resolve.
- Ensure the cap is fully in position. You may feel some resistance in the lid; however, continue twisting until you hear a click.
- Pressure: Please ensure the pressure is released right after every cycle. If it is not, pressure will build up and may cause the bottle to leak.
-
Gasket: Check and clean the gasket on the lid. If necessary, use tweezers to remove it and examine it.
➡️ Troubleshooting: Battery, Charging, and/or Power Issues
Battery not charging
-
Defective cable
- If necessary, check and replace the USB-C to USB-C cable.
- Any aftermarket cable is compatible.
- Improper connection: Ensure the USB-C cable is securely connected to the generator and the charging block.
-
Faulty outlet:
- Plug the charging block into a different wall outlet.
- Avoid using power strips or alternate power sources.
Battery Dying Quickly
-
Battery Capacity: Your Echo Flask is designed to run up to 5-7 10-minute cycles on a single full charge. Even after receiving the "Low Battery" advisory, you should still be able to complete
1-2 more full cycles before needing to recharge. -
Battery Usage & Syncing: If you frequently pair and sync your Flask with the Echo Water App, the battery may drain faster than usual.
- Charging Recommendations: Allow a minimum of 2.5 hours for a full charge to ensure optimal performance. While your Flask may indicate a full battery sooner, charging for the entire duration helps consistently maintain the battery average.
Damaged Charging Port or Accessories
- Inspect the charging port and accessories for visible damage.
- Contact Echo Support if needed.
Charging Stops Intermittently
- Loose connection: Ensure the USB-C cable is firmly connected to the generator and charging block.
- Overheating: Unplug the device and allow it to cool before resuming charging.
Battery Not Charging
-
Defective cable
- If necessary, check and replace the USB-C to USB-C cable. You may also use a USB-A to USB-C charger.
- Any aftermarket cable is compatible.
- Improper connection: Ensure the USB-C cable is securely connected to the generator and the charging block.
-
Faulty outlet:
- Plug the charging block into a different wall outlet.
- Avoid using power strips or alternate power sources.
Damaged Charging Port or Accessories
- Inspect the charging port and accessories for visible damage.
- Contact Echo Support if needed.
➡️ Troubleshooting: Pressurization
Step 1: Check the Lid Alignment
Make sure the lid is aligned correctly and locked into place.
- Tighten the lid firmly until the Echo logo is positioned perpendicular or horizontal to the flask.
- You may feel slight resistance—keep twisting until you hear or feel a “click.”
- To release pressure, press down on the area marked with a circle.
- Pressing the center or opposite side will not release pressure properly.
- Pressing the center or opposite side will not release pressure properly.
- A faint hiss or loud “pop” are both normal. If there’s no sound at all and pressed immediately after the cycle, proceed to Step 2.
Step 2: Inspect the Gasket
Check the gasket for any issues that might prevent proper sealing.
- Remove the gasket from the lid and inspect it for:
- Compression
- Debris or dirt
- Sticking or improper placement
- Rinse and clean the gasket thoroughly.
- When reinserting:
- Ensure the indented side faces inward. A backward gasket will prevent a proper seal.
- Tighten the lid as instructed in step 1 and run a test cycle.
- If you still don’t hear a release sound, continue to Step 3.
📽️ Need a visual? Watch our Cap and Seal Video.
If your Echo Flask™ is still not building pressure after completing all the steps above, the lid may need to be replaced. Just let us know and we will get one on its way ASAP!
➡️ Troubleshooting: Sound During the Hydrogenation Cycle
Sound from Lid and/or Cap:
-
The Echo Flask™ cap is designed with a built-in pressure release valve that helps manage pressure buildup during the hydrogenation process. It’s completely normal to hear air escaping from the cap while the cycle is running, as the valve releases excess pressure. The sound may be more pronounced if water or debris is trapped in the cap's crevices; this is not a defect and does not affect the PPM concentration of your hydrogen water.
Why Does the Cap Make Noise?
-
Louder Sound at First?
- The valve may be a bit more rigid when new, but don’t worry—it will soften over time with regular use, and the noise should decrease.
-
Sound Variation Between Cycles?
- The amount of sound you hear can vary depending on how much pressure is released during each cycle. If it sounds different from time to time, that’s expected.
-
Hearing a "Leaking" Sound?
- This is likely just water trapped inside the cap or seal, which can happen if:
- The flask is filled to the top of the spout
- Water enters the cap from submersion or spills
- The flask is filled to the top of the spout
- This does not affect the PPM concentration.
- This is likely just water trapped inside the cap or seal, which can happen if:
How to Fix It
- Simply remove the cap when not in use to allow any trapped moisture to dissipate.
- This will prevent any unexpected sounds during future use.
-
Louder Sound at First?
Sound from the Base or Generator
-
The Echo Flask™ produces hydrogen-enriched water through a process called electrolysis. This involves sending an electrical current through the water to separate hydrogen from oxygen. It's a safe and efficient method that allows your flask to infuse your water with beneficial molecular hydrogen.
Hearing a gentle hum, sizzling or crackling, or even a light ticking sound is entirely normal during this process. These sounds are simply the byproduct of electrolysis in action, and as long as the flask is producing hydrogen (bubbles), your flask is working as intended.
-
The Echo Flask™ is equipped with a built-in oxygen port (a small hole located by the serial # on the bottom of your flask) that releases excess oxygen during the hydrogenation process. It’s completely normal to hear air escaping from this port while the cycle is running. If there’s water or debris in the port, the sound may resemble a leaking, crackle, or even a light ticking noise. As long as the flask is producing hydrogen (bubbles), these sounds are perfectly normal.
➡️ Troubleshooting: Miscellaneous
| Problem | Possible Cause | Solution |
|---|---|---|
| The flask is not turning on. | The battery is low or depleted | - Charge the flask using the provided USB-C cable. - Check for moisture or debris in the charging port and allow it to dry if needed. |
| The display will not wake (black screen). | Potential charging or power loss | - Plug in the flask and attempt to wake the display. This often resolves the issue quickly. - If the battery is low, leave the flask plugged in for a short time to regain functionality. - If the issue persists, contact Echo Support. |
| Bluetooth is not pairing. | Bluetooth is off, interference is present, or a firmware upgrade may be needed. | - Ensure Bluetooth is enabled on your phone. - Activate pairing mode on your flask by pressing the Bluetooth button on the touch screen. |
| The lid is difficult to open. | The lid's tabbed design is unfamiliar, or pressure is not released. | - Press the pressure release indent on the lid until you hear the pressure escape. - Push down gently and twist the lid counter-clockwise to unlock. - Over time, the lid will become easier to remove as it breaks in. |
| The lid pops off during hydrogenation. | The lid had not been adequately secured before running a hydrogenation cycle. |
- Apply downward pressure while twisting the lid to close it to the right. - Ensure the logo is parallel or perpendicular to the flask for a proper seal. You may feel some resistance in the lid; however, you must continue to twist until you hear a "click." This will ensure the lid is in position. |
| The lid pops off when opening and/or makes a loud "POP." | The pressure was not released before attempting to open the flask after a hydrogen cycle. |
|
| The hydrogenation cycle stops prematurely. | Overuse or overheating of the generator or your flask may need to be charged. |
- Plug your flask in. |
| Unusual taste or odor. | Water that contains minerals and/or contaminants or your flask may need cleaning. | - Follow the Deep Cleaning & Descaling instructions under this manual's Cleaning and Maintenance section. - Use a different water source, such as RO or distilled water, without minerals added. Note: Taste and odors are not covered under warranty. |
| Mildew or mold is present. | Improper cleaning or moisture retention. | - Follow the Deep Cleaning & Descaling instructions under this manual's Cleaning and Maintenance section. Note: Mildew or mold is not covered under warranty. |
| Flickering Lights. | Water has entered the charging port, causing circuit damage, or a firmware upgrade may be needed. | - Please contact Echo Support for more help. |
PRODUCT SEPCIFICATIONS
| Model Name | Echo Flask Hydrogen Water Bottle™ |
| Flask Capacity | 12 ounces (354 ml/0.06 liters) |
| PPM Levels | 6 PPMs (10 Minute Default Cycle) 8 PPMs (20 Minute Cycle) |
| Weight | 1 lb (455.5 g) Empty 1.8 lb (816.4 g) Full |
| Dimensions |
Height: 10 inches (258mm) Width: 3 inches (76mm) Depth: 2 inches (48mm) |
| Operating Time |
10 minutes (Default) 0 - 20 minutes (Max) |
| PSI |
Up to 60 PSI |
| Charging Time | 2.5 hours |
| Number of Cycles Achieved With Single Charge | (The battery supports approximately 5–7 cycles at 10 minutes each—or around 3–4 cycles if you prefer the 20-minute option. Please note that after receiving the low battery advisory message, you will be able to run 1-2 complete 10-minute cycles. |
| Battery Type & Certification | Rechargeable 2200 MAH (7.4wh) Lithium Ion battery. Electromatic Compatibility Certification Registration#R-R-awi-IW-5W001 |
| Proton Exchange Membrane (PEM) | Utilizes Nafion Dual-Chambered PEM Technology |
| Manufacture Location | Philippines |
REGISTRATION
If you purchased directly through Echo Water, you do not need to register your product.
You can register your product HERE for warranty if you purchased from a third-party retailer.
WARRANTY
| 10-Year Product Warranty | |
| Company | Echo Technologies LLC |
| Company Support Phone | +1 855-737-1114 |
| Company Website | www.echowater.com |
| Customer Support Email | Support@echowater.com |
Please use the QR code below or visit our Warranty Page for Warranty Information.
RETURN POLICY
We understand that everyone’s experience with hydrogen water is unique. To ensure you have enough time to explore its benefits, we offer a 60-day return policy.
This policy allows you to evaluate how hydrogen water aligns with your health goals, as benefits may take time to become noticeable. Returns and exchanges are simple and can be processed through our return/exchange portal, making the process hassle-free.
By maintaining a consistent routine and tracking your progress, you can maximize the potential of your Echo Flask™ and fully experience its wellness benefits. If the Echo Flask™ doesn’t meet your expectations, or if you feel you may need additional time, we’re here to help! Contact our support team to discuss your options.
THIRD-PARTY TESTING
The Echo hydrogen water generator has been rigorously tested and certified by H2 Analytics and SilverState Analytical Laboratories. These certifications confirm that the generator:
- Does not produce heavy metal byproducts.
- Meets stringent safety and performance standards.
Access Testing Reports
Complete testing reports are available in the "Attachments" section at the end of this manual.
ECHO WATER SUPPORT
If you have any issues or questions about your Echo Flask™, our dedicated support team is here to assist. Whether you need technical assistance, replacement parts, or general inquiries, we’re committed to resolving your concerns.
Contact Methods
Email:
- Send an email to support@echowater.com with a detailed description of your issue or question.
- Include your order number and relevant photos to help us assist you more effectively.
- Our team will get back to you as soon as possible to address your concerns.
Phone:
- Call us at 1-855-737-1114 between 9 AM and 5 PM MST, Monday through Friday.
- Our friendly customer support representatives are ready to help you out.
Online Support:
- Visit www.echowater.com/support to:
- You can access the FAQs and troubleshooting guides.
- Submit a support request directly.
- Use our live chat service, available Monday through Friday, from 9 AM to 5 PM MST.
| Echo Customer Support |
|
|
Related to:
Add comment
Article is closed for comments.
